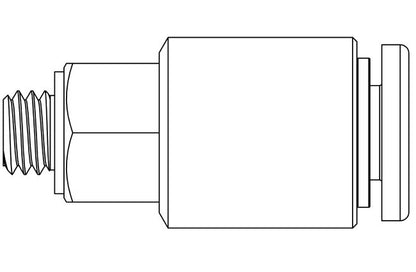

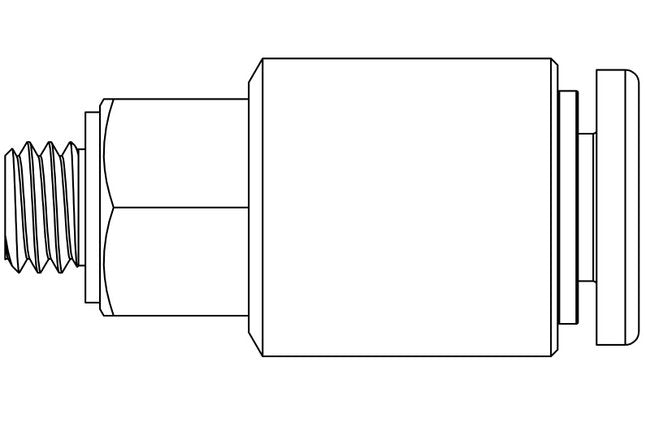

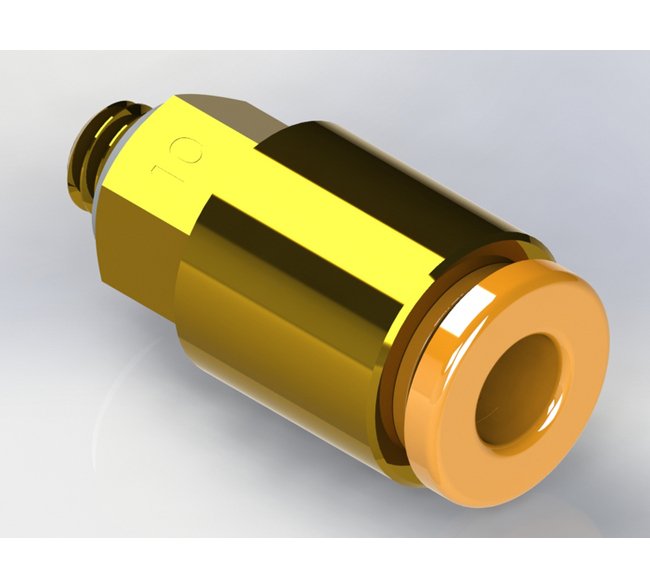

Precision Orifice Tube Adapters, 10-32 UNF x Tube
Precision Orifice Tube Adapters, 10-32 UNF x Tube
SKU:PRE-081ba4
High-performance Precision Orifice Tube Adapters for precise flow control and durability. Meets Federal/DoD standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Orifice Tube Adapters, 10-32 UNF x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Orifice Tube Adapters, 10-32 UNF x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Orifice Tube Adapters offer high-performance with an Orifice Diameter of 0.031 in and a Maximum Operating Pressure of 140 psig. Constructed with Brass/Plastic materials and Buna-N Seals, these adapters ensure durability and reliability. Meeting Federal/DoD procurement standards and FAR compliance factors, this product guarantees quality and precision for institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.031 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.62 | 5 psig: 12.4 | 10 psig: 18.3 | 15 psig: 22.5 | 20 psig: 26.3 | 25 psig: 30.1 | 30 psig: 33.7 | 40 psig: 41.1 | 50 psig: 48.5 | 60 psig: 55.9 | 70 psig: 63.6 | 80 psig: 71.2 | 90 psig: 78.8 | 100 psig: 86.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.65 | 5 psig (34.5 kPag): 5.86 | 10 psig (69.0 kPag): 8.63 | 15 psig (103.4 kPag): 10.6 | 20 psig (137.9 kPag): 12.4 | 25 psig (172.4 kPag): 14.2 | 30 psig (206.9 kPag): 15.9 | 40 psig (275.8 kPag): 19.4 | 50 psig (344.8 kPag): 22.9 | 60 psig (413.7 kPag): 26.4 | 70 psig (482.7 kPag): 30.0 | 80 psig (551.6 kPag): 33.6 | 90 psig (620.6 kPag): 37.2 | 100 psig (689.5 kPag): 40.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 10.7 | 20 In. Hg.: 10.7 | 30 In. Hg.: 10.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.05 | 20 In. Hg. (508 Mm. Hg.): 5.05 | 30 In. Hg. (762 Mm. Hg.): 5.05
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.01 | 10 In. Hg.: 10.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.78 | 10 In. Hg. (254 Mm. Hg.): 4.77
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.022 | 2 psig: 0.031 | 3 psig: 0.038 | 4 psig: 0.044 | 5 psig: 0.049 | 6 psig: 0.054 | 7 psig: 0.058 | 8 psig: 0.062 | 9 psig: 0.066 | 10 psig: 0.070 | 15 psig: 0.085 | 20 psig: 0.098 | 30 psig: 0.120 | 40 psig: 0.139 | 50 psig: 0.156 | 60 psig: 0.170 | 70 psig: 0.184 | 80 psig: 0.197 | 90 psig: 0.209 | 100 psig: 0.220
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.083 | 2 psig (13.8 kPag): 0.118 | 3 psig (20.7 kPag): 0.144 | 4 psig (27.6 kPag): 0.167 | 5 psig (34.5 kPag): 0.186 | 6 psig (41.4 kPag): 0.186 | 7 psig (48.3 kPag): 0.220 | 8 psig (55.2 kPag): 0.236 | 9 psig (62.1 kPag): 0.250 | 10 psig (69 kPag): 0.263 | 15 psig (103.4 kPag): 0.323 | 20 psig (137.9 kPag): 0.372 | 30 psig (206.9 kPag): 0.456 | 40 psig (275.8 kPag): 0.527 | 50 psig (344.8 kPag): 0.589 | 60 psig (413.7 kPag): 0.645 | 70 psig (482.7 kPag): 0.697 | 80 psig (551.6 kPag): 0.745 | 90 psig (620.6 kPag): 0.790 | 100 psig (689.5 kPag): 0.833
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.022
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
31
Specifications Screened
None
Specifications Seal Material
Buna-N
