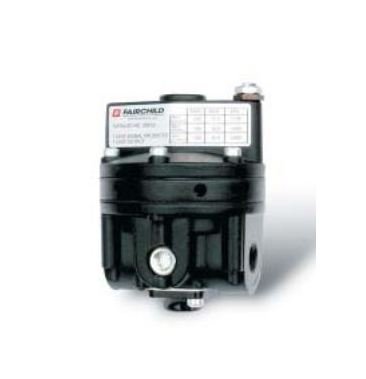

The Model 20 Pneumatic Precision Volume Boosters are expertly engineered to accurately reproduce low flow control signals into higher regulated output pressures. Designed to meet the strict precision requirements of institutions, these volume boosters offer exceptional accuracy, sensitivity, fast response, stability, and drift-free settings. With a wide range of pressure options and flow capacities, they are ideal for instrument and industrial control applications.
Product Specifications
Specifications Diameter
3 in | 76 mm
Specifications Exhaust Capacity
7.5 to 11 ft³/min | 12.8 to 18.7 m³/h
Specifications Flow Capacity
45 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
76.5 m³/h
Specifications Height
4-1/4 in | 114 mm
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications Maximum Signaloutput Pressure
Varies
Specifications National Pipe Thread Size
1/4 in | 3/8 in
Specifications Ratio Available
1:1 | 1:2 | 1:3 | 1:4 | 1:5 | 1:6 | 2:1 | 3:1 | 4:1 | 5:1
Specifications Sensitivity
0.25 to 1.50 Inch/WC | 0.64 to 3.8 cm
Specifications Variable Pressure Supply
0.1 to 0.60 psig | 0.7 to 4.0 kPa
