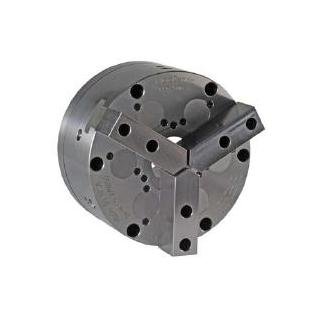

Precision Power Chuck Models - PPC250D
Precision Power Chuck Models - PPC250D
SKU:PRE-1caa10
Maximize precision and productivity with PPC250D Precision Power Chuck Models. High accuracy, durable design for reliable performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Precision Power Chuck Models - PPC250D
$1,899.99
Quantity: 1
Claim Your Seller Account
Precision Power Chuck Models - PPC250D
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PPC250D Precision Power Chuck Models offer exceptional precision with a 10.00" chuck diameter, 3 jaw and 2 jaw models, and QC precision change jaw system. Designed for versatility, it includes standard and long stroke models with a 2.60" through hole. With hardened chuck body, actuators, and master jaws, these chucks ensure long-term accuracy with a repeating accuracy of .0002" (0.005mm) TIR. Maximize productivity and performance with these durable and high-precision power chuck models.
Product Specifications
Specifications Accuracy
.0002 in | 0.005 mm
Specifications Actuator Stroke
.710 in | 18.0 mm
Specifications Chuck Weight
74.2 lb | 33.7 kg
Specifications Jaw Stroke
.380 in | 9.6 mm
Specifications Max Clamp Force
8,515 lbs | 37.9 kN
Specifications Max Draw Tube Force
21.0 lbs | 4,730 kN
Specifications Max Speed
2,500 rpm
Specifications Min Draw Tube Force
600 lbf | 2.7 kN
Specifications Moment Of Inertia
7.03 lb-ft² | 0.30 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
2.600 in | 66 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-8 as well as other spindle mounting plates are available on request.
