Precision Power Chuck PPC300D106
Precision Power Chuck PPC300D106
SKU:PRE-817a70
Achieve unparalleled precision with the PPC300D106 Precision Power Chuck Models. Optimal for machining perfection.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
Precision Power Chuck PPC300D106
$2,199.99
Quantity: 1
Claim Your Seller Account
Precision Power Chuck PPC300D106
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

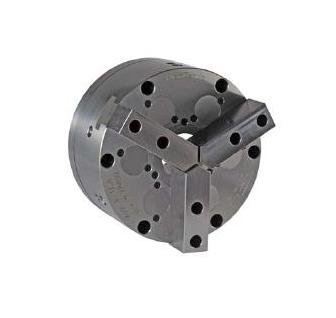

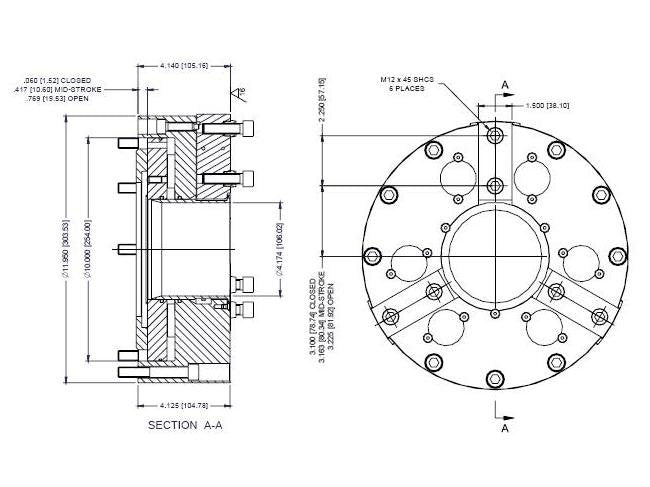

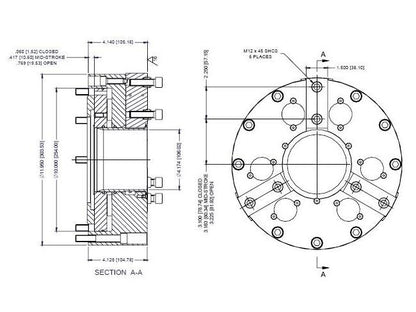

The Precision Power Chuck PPC300D106 models boast a chuck diameter of 12.00 inches (300mm) with both 3 jaw and 2 jaw options. Featuring a QC precision change jaw system, standard and long stroke models, and a 4.17-inch (106mm) through hole, these chucks are engineered for ultimate precision. With a repeating accuracy of .0002 inches (0.005mm) TIR, hardened chuck body, actuators, and master jaws, these models ensure long-term accuracy and performance in demanding machining applications.
Product Specifications
Specifications Accuracy
.0002 in | 0.005 mm
Specifications Actuator Stroke
.710 in | 18.0 mm
Specifications Chuck Weight
100.8 lb | 45.7 kg
Specifications Jaw Stroke
.380 in | 9.6 mm
Specifications Max Clamp Force
16,830 lbs | 74.9 kN
Specifications Max Draw Tube Force
8,270 lbs | 36.8 kN
Specifications Max Speed
2,000 rpm
Specifications Min Draw Tube Force
750 lbf | 3.3 kN
Specifications Moment Of Inertia
14.5 lb-ft² | 0.61 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
4.170 in | 106 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0

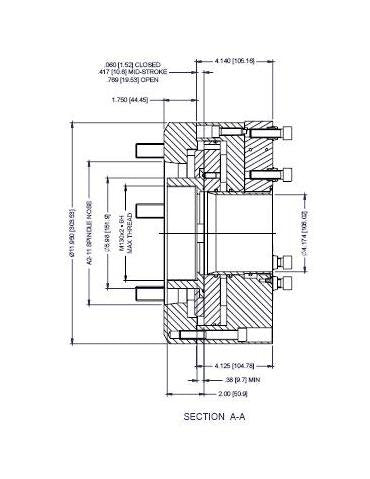

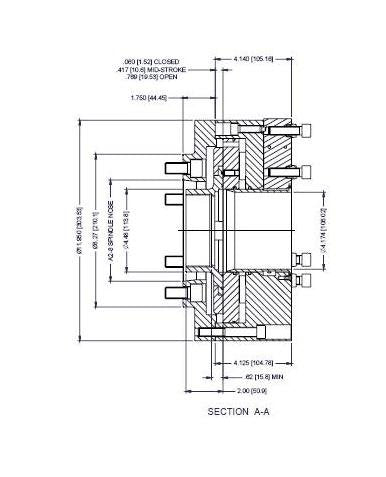

Threaded draw tube adapters are furnished on request A2-8, A2-11 as well as other spindle mounting plates are available on request.
