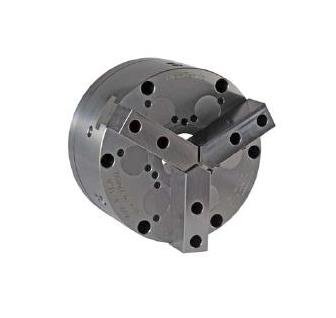

The Precision Power Chuck PPC300D106 models offer precision and durability for a wide range of machining applications. With a 12.00" chuck diameter, both 3 jaw and 2 jaw models, and a QC precision change jaw system, these chucks ensure efficient and accurate workholding. Featuring standard and long stroke models, a 4.17" through hole, and hardened components for long term accuracy, these chucks are designed to minimize jaw lift and provide a repeating accuracy of .0002" (0.005mm) TIR. Maximize your machining operations with the reliability and performance of the PPC300D106 Precision Power Chuck.

Product Specifications

Specifications Accuracy

.0002 in | 0.005 mm

Specifications Actuator Stroke

.710 in | 18.0 mm

Specifications Chuck Weight

100.8 lb | 45.7 kg

Specifications Item No

14 512 009

Specifications Jaw Stroke

.250 in | 6.3 mm

Specifications Max Clamp Force

14,240 lbs | 63.6 kN

Specifications Max Draw Tube Force

5,510 lbs | 24.5 kN

Specifications Max Speed

2,800 rpm

Specifications Min Draw Tube Force

750 lbf | 3.3 kN

Specifications Moment Of Inertia

14.5 lb-ftÂ² | 0.61 kg-mÂ²

Specifications No Of Jaws

Specifications Through Hole

4.170 in | 106 mm

Standard Equipment 0

Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

Threaded Draw Tube Adapters Spindle Mounting Plates 0

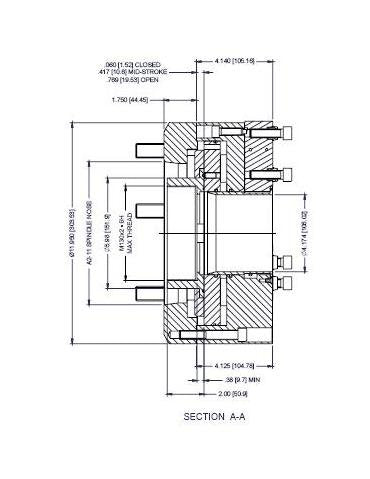

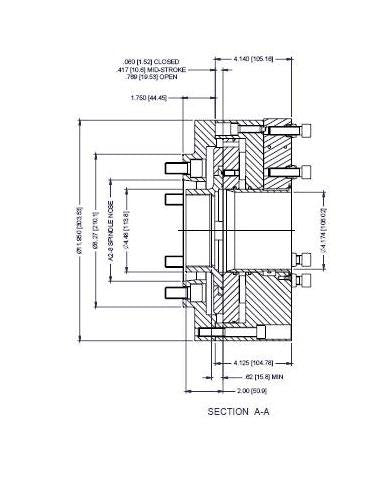

Threaded draw tube adapters are furnished on request A2-8, A2-11 as well as other spindle mounting plates are available on request.
