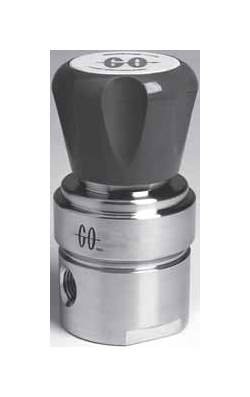

Precision PR-1 Series Pressure Regulators

Name: Precision PR-1 Series Pressure Regulators
Brand: Circle Valve Technologies Inc.
SKU: GOR-8cd0ab
Price: 189.99 USD
Availability: OutOfStock

SKU:GOR-8cd0ab

Versatile pressure regulators for precise pressure control in instrumentation and semiconductor applications.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision PR-1 Series Pressure Regulators are expertly designed for precision pressure control in instrumentation sample systems and semiconductor processing gases. Constructed with high-quality 316L stainless steel body material for secure welded connections, these regulators feature stainless steel caps and adjusting screws to prevent atmospheric corrosion. With enhanced internal body surface finish and electropolishing, maintenance is easier while minimizing particle contamination. Offering various seat materials, alternate orifice sizes, and pressure control ranges, these regulators cater to a wide spectrum of pressure control needs, supporting inlet pressures up to 6000 psig and operating temperatures up to 500°F.

Product Specifications

Options 0

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Tamper-proof, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.025

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 50 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

PEEKÂ® low temperature service (plastic knob standard)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

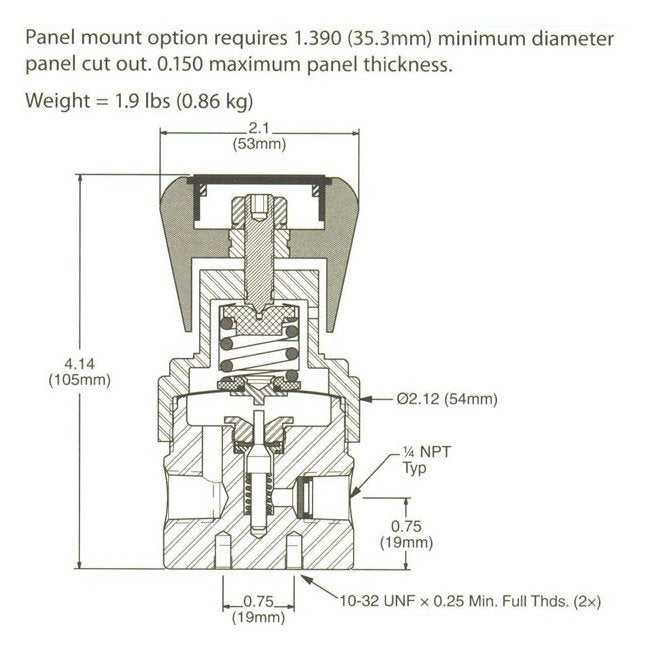

Specifications Weight

1.9 lbs

Precision PR-1 Series Pressure Regulators
