Precision Press-Fit Inserts - 0.094" OD
Precision Press-Fit Inserts - 0.094" OD
SKU:PRE-45e6d4
Enhance fluid control with our accurate Press-Fit Orifices - ideal for precise flow rate management in institutional setups.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Press-Fit Inserts - 0.094" OD
$24.99
Quantity: 1
Claim Your Seller Account
Precision Press-Fit Inserts - 0.094" OD
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

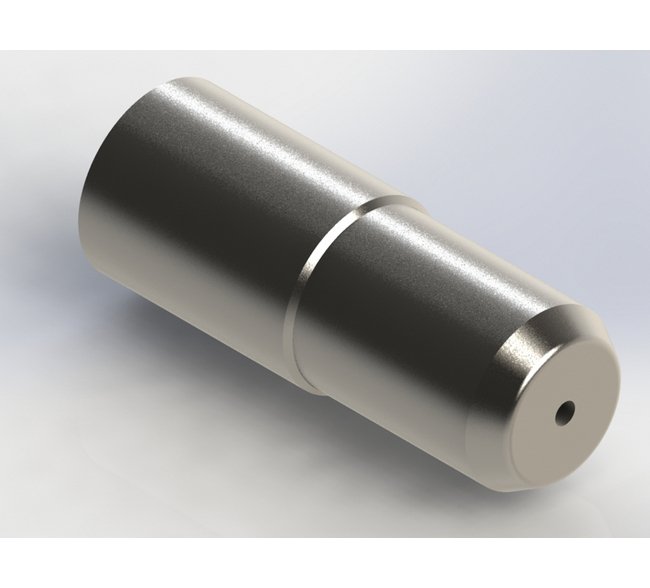

Upgrade your fluid control systems with our Precision Metal Orifices - Press-Fit Inserts. Crafted from high-grade 303 SS, these inserts ensure precise flow rate control for liquids or gases. With an Orifice Diameter Accuracy of ±0.0005 in and a Maximum Operating Pressure of 4000 psig, they guarantee reliable performance in demanding environments. Compatible with a variety of fittings, manifolds, and custom parts, these inserts offer exceptional accuracy and durability for institutional applications.
Product Specifications
Application 0

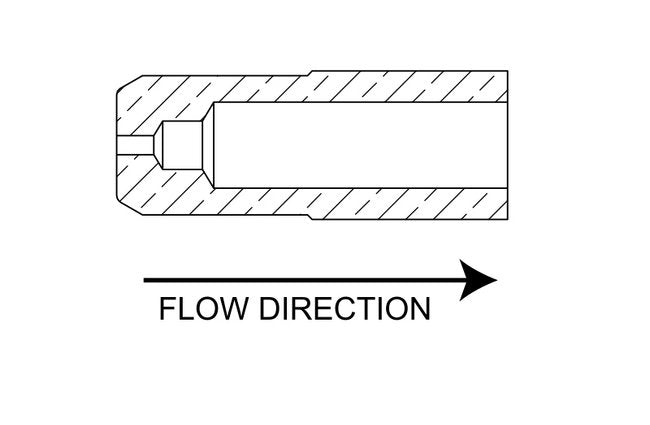

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

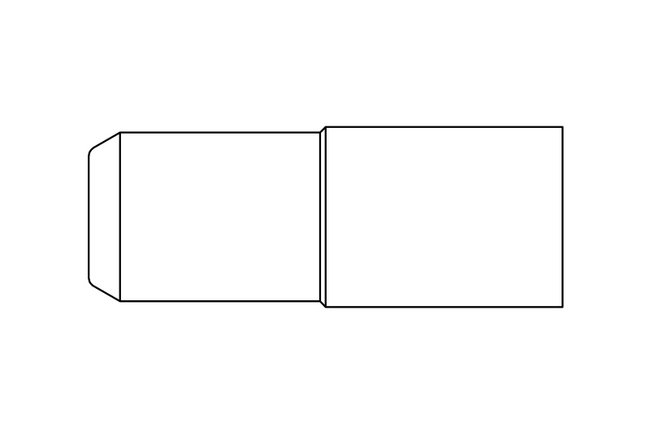

Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.018 in | 0.46 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.82 | 5 psig: 4.20 | 10 psig: 5.38 | 15 psig: 6.84 | 20 psig: 8.18 | 25 psig: 9.43 | 30 psig: 10.7 | 40 psig: 13.2 | 50 psig: 15.7 | 60 psig: 18.2 | 70 psig: 20.7 | 80 psig: 23.3 | 90 psig: 25.9 | 100 psig: 28.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.86 | 5 psig (34.5 kPag): 1.98 | 10 psig (69.0 kPag): 2.54 | 15 psig (103.4 kPag): 3.23 | 20 psig (137.9 kPag): 3.86 | 25 psig (172.4 kPag): 4.45 | 30 psig (206.9 kPag): 5.03 | 40 psig (275.8 kPag): 6.21 | 50 psig (344.8 kPag): 7.40 | 60 psig (413.7 kPag): 8.58 | 70 psig (482.7 kPag): 9.77 | 80 psig (551.6 kPag): 11.0 | 90 psig (620.6 kPag): 12.2 | 100 psig (689.5 kPag): 13.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.71 | 20 In. Hg.: 3.71 | 30 In. Hg.: 3.71
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.75 | 20 In. Hg. (508 Mm. Hg.): 1.75 | 30 In. Hg. (762 Mm. Hg.): 1.75
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.7 | 10 In. Hg.: 3.35
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.28 | 10 In. Hg. (254 Mm. Hg.): 1.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0073 | 2 psig: 0.0103 | 3 psig: 0.0126 | 4 psig: 0.0146 | 5 psig: 0.0163 | 6 psig: 0.0179 | 7 psig: 0.0193 | 8 psig: 0.0206 | 9 psig: 0.0219 | 10 psig: 0.0231 | 15 psig: 0.0283 | 20 psig: 0.0326 | 30 psig: 0.0400 | 40 psig: 0.0462 | 50 psig: 0.0516 | 60 psig: 0.0565 | 70 psig: 0.0611 | 80 psig: 0.0653 | 90 psig: 0.0693 | 100 psig: 0.0730
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0276 | 2 psig (13.8 kPag): 0.0391 | 3 psig (20.7 kPag): 0.0479 | 4 psig (27.6 kPag): 0.0553 | 5 psig (34.5 kPag): 0.0618 | 6 psig (41.4 kPag): 0.0618 | 7 psig (48.3 kPag): 0.0731 | 8 psig (55.2 kPag): 0.0782 | 9 psig (62.1 kPag): 0.0829 | 10 psig (69 kPag): 0.0874 | 15 psig (103.4 kPag): 0.1070 | 20 psig (137.9 kPag): 0.1236 | 30 psig (206.9 kPag): 0.1514 | 40 psig (275.8 kPag): 0.1748 | 50 psig (344.8 kPag): 0.1954 | 60 psig (413.7 kPag): 0.2140 | 70 psig (482.7 kPag): 0.2312 | 80 psig (551.6 kPag): 0.2472 | 90 psig (620.6 kPag): 0.2622 | 100 psig (689.5 kPag): 0.2763
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.0073
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
18
Specifications Screened
None
