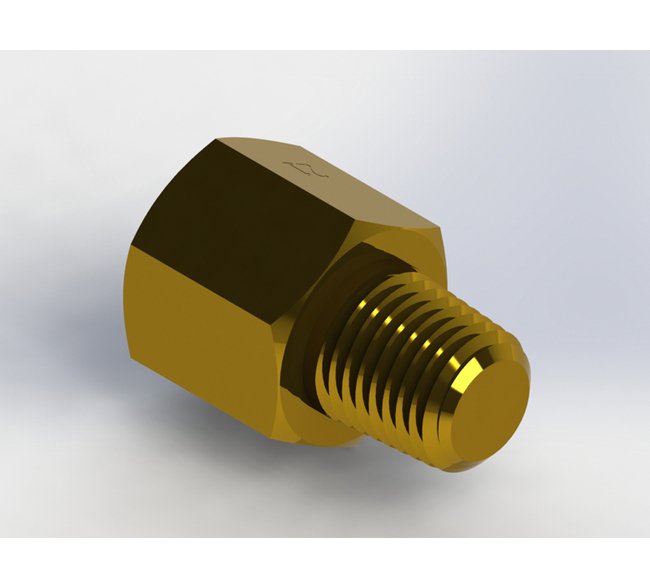

Precision Pressure Snubber - NPT Brass Adapter
Precision Pressure Snubber - NPT Brass Adapter
SKU:PRE-4e9286
Optimize pressure control with our Precision Pressure Snubber - NPT Brass Adapter, ideal for accurate pressure readings and fluid flow control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Pressure Snubber - NPT Brass Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Pressure Snubber - NPT Brass Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Pressure Snubber - NPT Brass Adapter is a crucial in-line component designed to mitigate rapid pressure variations in pressure instruments and controls. Featuring a small orifice that limits flow, this adapter effectively dampens shock and fluctuations, ensuring accurate pressure readings. With an orifice diameter ranging from 0.004" to 0.020", this brass adapter is suitable for various applications with a maximum operating pressure of 2000 psig. Ideal for pressure gauges, measuring instruments, air/hydraulic piloted valves, cylinders, and fluid actuators, it enables precise control over fluid flow for optimal system response.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.0040 in
Dimensions Total Length
1.25 in
Dimensions Width Across Flats Hex
3/4 in
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cv
0.00035
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
