Precision Pressure Snubber NPT Pipe Adapter
Precision Pressure Snubber NPT Pipe Adapter
SKU:PRE-6079b5
Reduce pressure fluctuations with the Precision Pressure Snubber NPT Pipe Adapter. Optimal flow control for precision instruments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Pressure Snubber NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Pressure Snubber NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

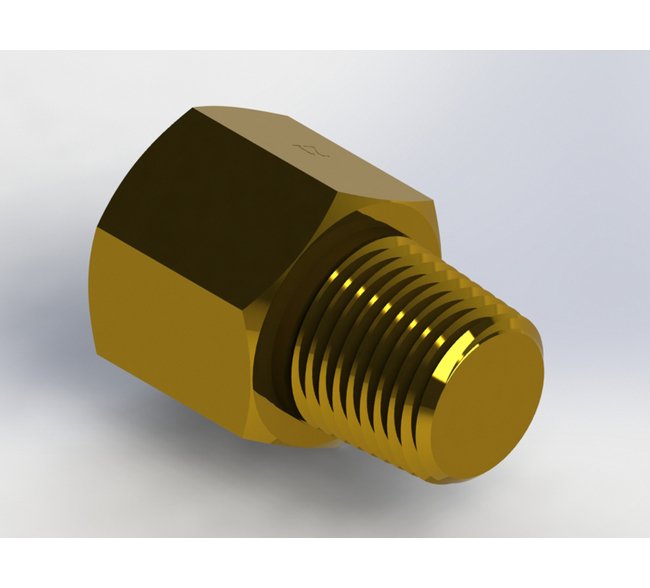

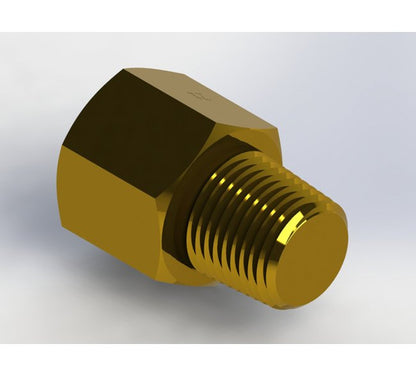

The Precision Pressure Snubber NPT Pipe Adapter is a vital in-line element designed to reduce rapid pressure fluctuations in precision instruments and controls. This brass adapter features a tiny orifice that effectively dampens shock and pressure variations by controlling the fluid flow rate. With orifice diameters ranging from 0.004" to 0.020", it offers optimal performance tailored to the pressurized chamber size, fluid viscosity, and system response time. Ideal for pressure gages, measuring instruments, and various valves, this adapter ensures stable fluid delivery to cylinders and actuators.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.0040 in
Dimensions Total Length
1.690 in
Dimensions Width Across Flats Hex
1 1/16 in
Specifications Connection A
1/2" NPT Male
Specifications Connection B
1/2" NPT Female
Specifications Cv
0.00035
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
