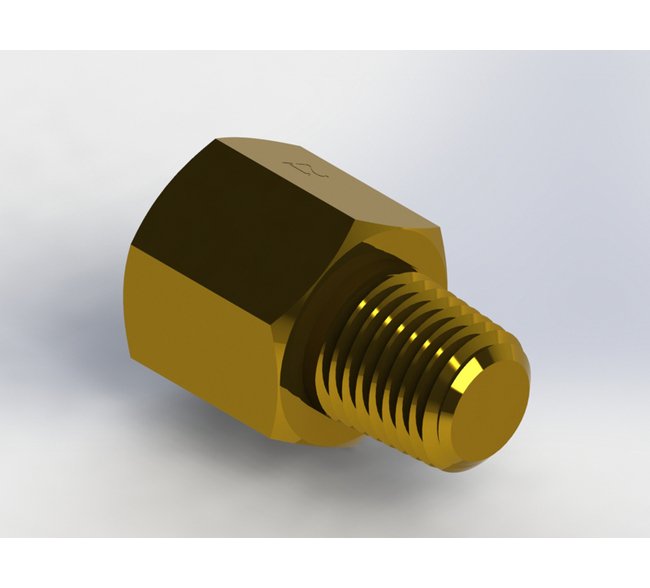

Precision Pressure Snubber NPT Pipe Adapter

Name: Precision Pressure Snubber NPT Pipe Adapter
Brand: O'Keefe Controls Co.
SKU: PRE-953a94
Price: 29.99 USD
Availability: OutOfStock

SKU:PRE-953a94

Enhance pressure instrument performance with our Precision Pressure Snubber NPT Adapter!

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Pressure Snubber NPT Pipe Adapter is an essential in-line component designed to reduce and control fluid flow into pressure instruments and controls. Crafted with precision, it features a brass construction with an orifice diameter of 0.008 inches, ensuring optimal dampening of shock and pressure fluctuations. With a maximum operating pressure of 2000 psig and strategic 1/4" NPT connections, this adapter is ideal for applications in various components such as Pressure Gauges, Air Piloted Valves, and Fluid Actuators. Choose reliability and efficiency with this versatile pressure snubber adapter.

Product Specifications

Application 0

Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators

Dimensions Orifice Diameter

0.008 in

Dimensions Total Length

1.25 in

Dimensions Width Across Flats Hex

3/4 in

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cv

0.0015

Specifications Material

Brass

Specifications Maximum Operating Pressure

2000 psig

Specifications Screened

None

Precision Pressure Snubber NPT Pipe Adapter
