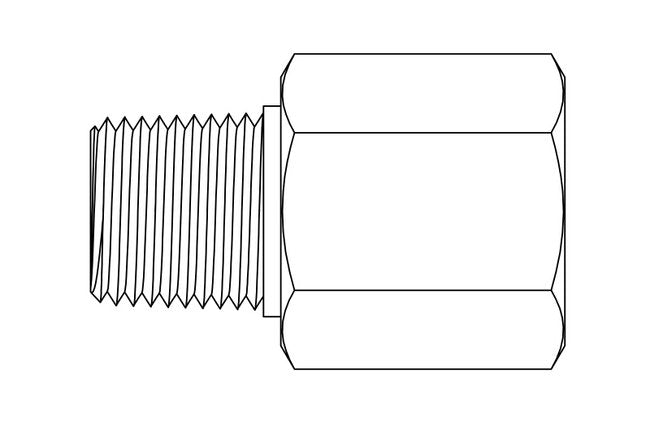

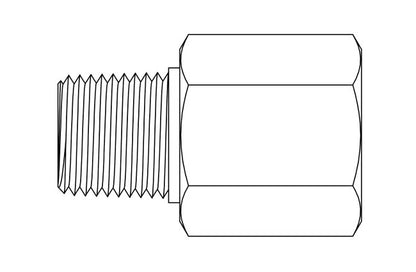

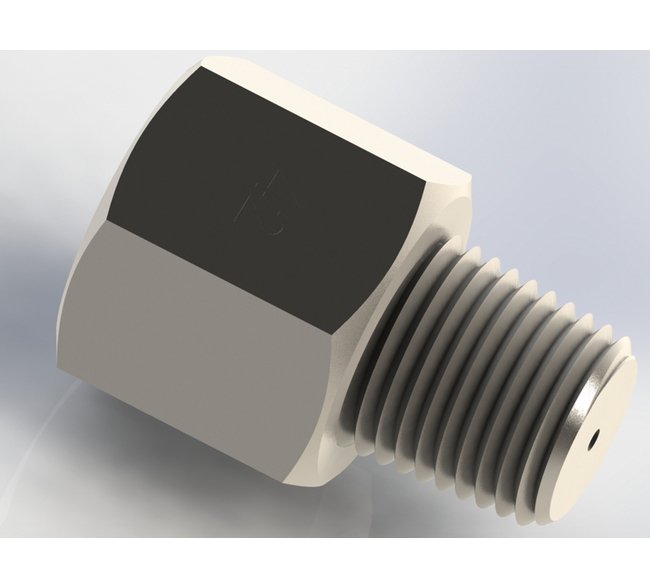

Precision Pressure Snubber - NPT Pipe Adapter
Precision Pressure Snubber - NPT Pipe Adapter
SKU:PRE-248d9f
Control rapid pressure changes with the Precision Pressure Snubber - NPT Pipe Adapter, optimized for maximum efficiency and durability in fluid systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Pressure Snubber - NPT Pipe Adapter is a vital component for mitigating rapid pressure changes in fluid systems. Crafted from 303 SS, it features an optimal 0.008" Orifice Diameter for precise flow control, ensuring a maximum operating pressure of 4000 psig. Ideal for Pressure Measuring Instruments, Air Valves, and Hydraulic Systems, this snubber guarantees controlled fluid delivery.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0

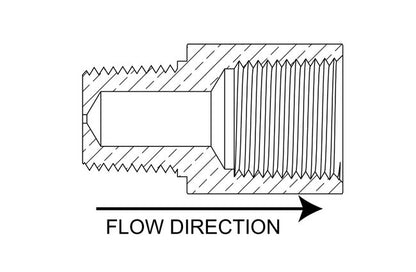

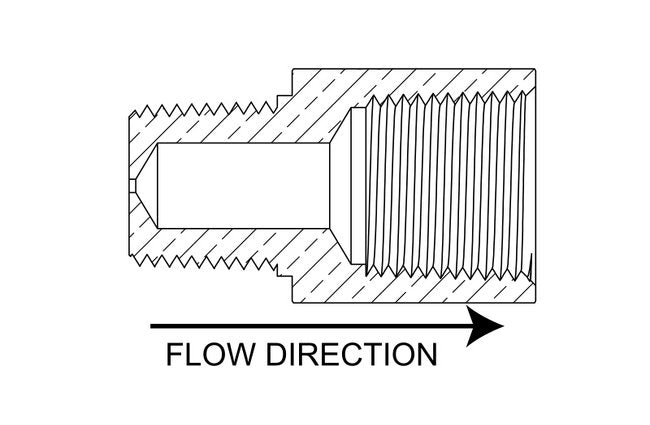

Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.008 in
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cv
0.0015
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
