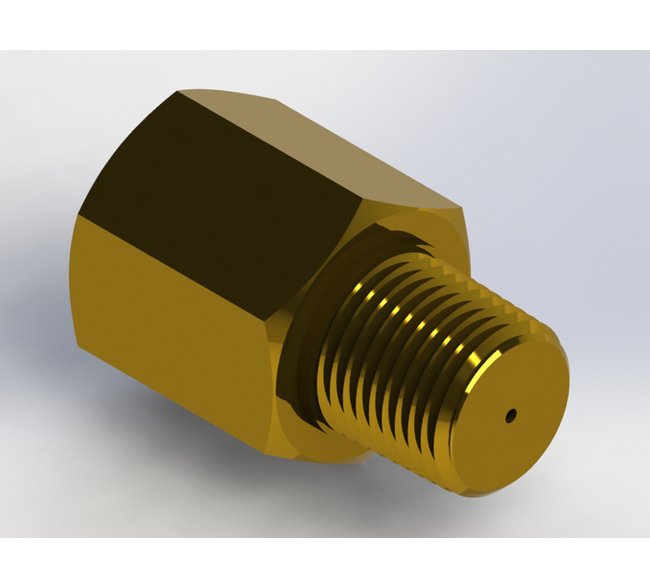

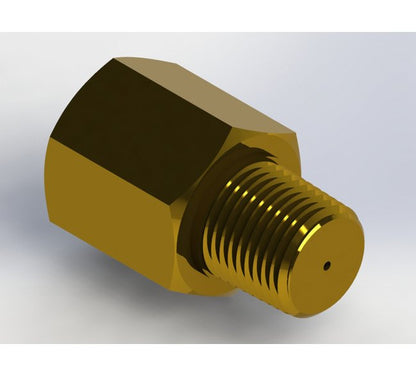

Precision Pressure Snubber - NPT Pipe Adapter

Name: Precision Pressure Snubber - NPT Pipe Adapter
Brand: O'Keefe Controls Co.
SKU: PRE-b0cf1f
Price: 34.99 USD
Availability: OutOfStock

SKU:PRE-b0cf1f

Achieve precision pressure control with our Precision Pressure Snubber - NPT Pipe Adapter. Ideal for pressure gauges, instruments, and valves.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance precision and control in pressure instrumentation with our Precision Pressure Snubber. Crafted from high-quality brass, it features an ultra-fine .0040" orifice, ensuring effective dampening of pressure fluctuations. With a CV of 0.00035 and a maximum operating pressure of 2000 psig, this NPT Pipe Adapter is ideal for a wide range of applications, including controlling fluid flow to cylinders and actuators.

Product Specifications

Application 0

Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators

Dimensions Orifice Diameter

0.0040 in

Dimensions Total Length

1.520 in

Dimensions Width Across Flats Hex

7/8 in

Specifications Connection A

3/8" NPT Male

Specifications Connection B

3/8" NPT Female

Specifications Cv

0.00035

Specifications Material

Brass

Specifications Maximum Operating Pressure

2000 psig

Specifications Screened

None

Precision Pressure Snubber - NPT Pipe Adapter
