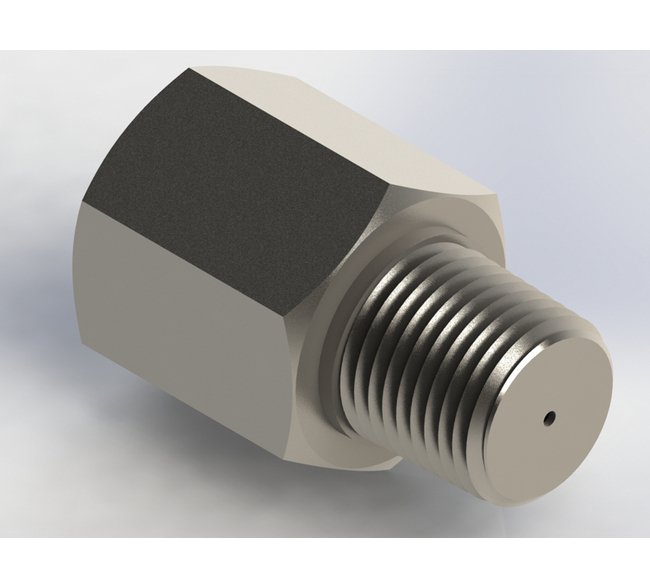

Precision Pressure Snubber NPT Pipe Adapter

Name: Precision Pressure Snubber NPT Pipe Adapter
Brand: O'Keefe Controls Co.
SKU: PRE-192a0b
Price: 29.99 USD
Availability: OutOfStock

SKU:PRE-192a0b

Achieve precise flow control with our Precision Pressure Snubber NPT Pipe Adapter, ideal for reducing rapid pressure fluctuations in instruments and controls.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Pressure Snubber NPT Pipe Adapter is an essential in-line element designed to mitigate rapid pressure fluctuations in various instruments and controls. Crafted from high-quality 303 SS material, this adapter boasts an orifice diameter of 0.0040 in, ensuring optimal CV of 0.00035 and a maximum operating pressure of 4000 psig. Suitable for a range of applications including Pressure Gages, Pressure Measuring Instruments, Air Piloted Valves, and more, this adapter guarantees precise flow control and shock absorption. With orifice sizes ranging from .004" to .020" diameter, it adapts seamlessly to different chamber sizes and fluid viscosities, meeting the diverse needs of institutional buyers.

Product Specifications

Application 0

Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators

Dimensions Orifice Diameter

0.0040 in

Dimensions Total Length

1.520 in

Dimensions Width Across Flats Hex

7/8 in

Specifications Connection A

3/8" NPT Male

Specifications Connection B

3/8" NPT Female

Specifications Cv

0.00035

Specifications Material

303 SS

Specifications Maximum Operating Pressure

4000 psig

Specifications Screened

None
