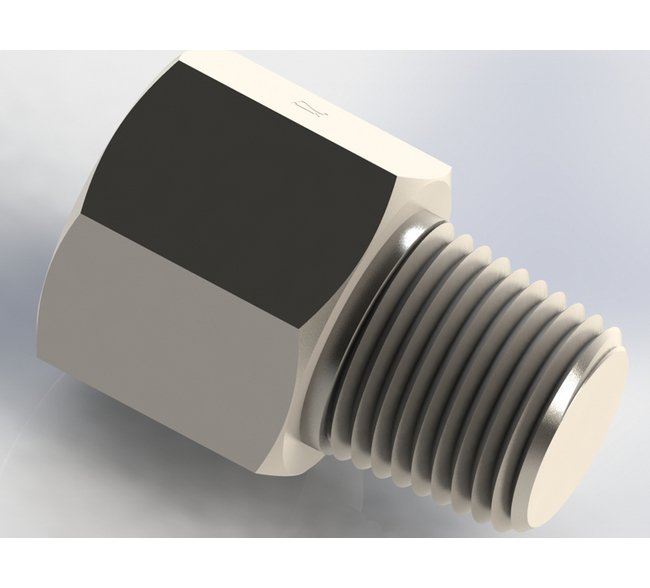

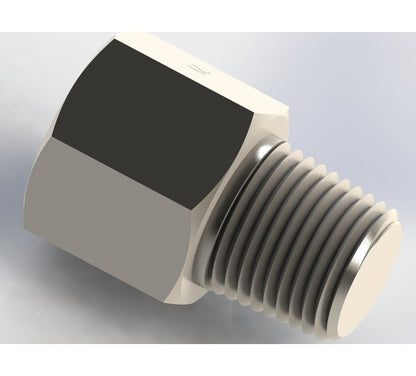

Precision Pressure Snubber - NPT Pipe Adapter
Precision Pressure Snubber - NPT Pipe Adapter
SKU:PRE-486da0
Precise pressure snubber for optimized fluid control. Ideal for pressure gages, measuring instruments, and fluid delivery systems
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Pressure Snubber NPT Pipe Adapter is a vital in-line element designed to diminish fluid flow rates into pressure instruments and controls in precision applications. Crafted from durable 303 SS, featuring an optimized orifice design ranging from 0.004" to 0.020" in diameter, it effectively mitigates shock and pressure fluctuations. This adapter, with a CV of 0.0015 and a max operating pressure of 4000 psig, ensures reliable performance, making it ideal for pressure gages, measuring instruments, and fluid delivery systems. Enhance precision and efficiency with this essential pressure snubber.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.008 in
Dimensions Total Length
1.690 in
Dimensions Width Across Flats Hex
1 1/16 in
Specifications Connection A
1/2" NPT Male
Specifications Connection B
1/2" NPT Female
Specifications Cv
0.0015
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
