Precision Pressure Snubber NPT Pipe Adapter
Precision Pressure Snubber NPT Pipe Adapter
SKU:PRE-043120
Enhance operational efficiency with the Precision Pressure Snubber NPT Pipe Adapter. Ideal for precise flow control and pressure fluctuations. Maximize reliability and performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Pressure Snubber NPT Pipe Adapter
$39.99
Quantity: 1
Claim Your Seller Account
Precision Pressure Snubber NPT Pipe Adapter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

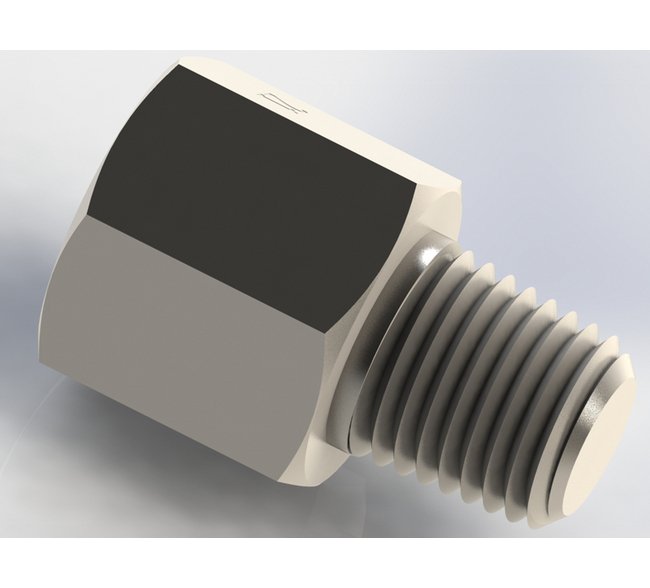

The Precision Pressure Snubber NPT Pipe Adapter is a vital component for minimizing rapid pressure fluctuations in pressure instruments and controls. Crafted from durable 303 SS, it features an orifice diameter of 0.008 inches, ensuring exceptional dampening effects on shock and pressure variations. With a CV of 0.0015 and a maximum operating pressure of 4000 psig, this adapter is ideal for applications requiring precise flow control and response time. Whether used in pressure gauges, hydraulic valves, or fluid actuators, this adapter guarantees reliable performance and extended durability.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.008 in
Dimensions Total Length
1.25 in
Dimensions Width Across Flats Hex
3/4 in
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cv
0.0015
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
