Precision Pressure Snubber - NPT Pipe Adapter
Precision Pressure Snubber - NPT Pipe Adapter
SKU:PRE-ba04db
Enhance instrument performance and stability with the Precision Pressure Snubber NPT Pipe Adapter, reducing flow rates effectively with its precise orifice design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

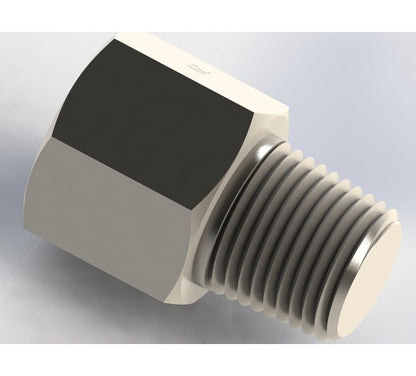

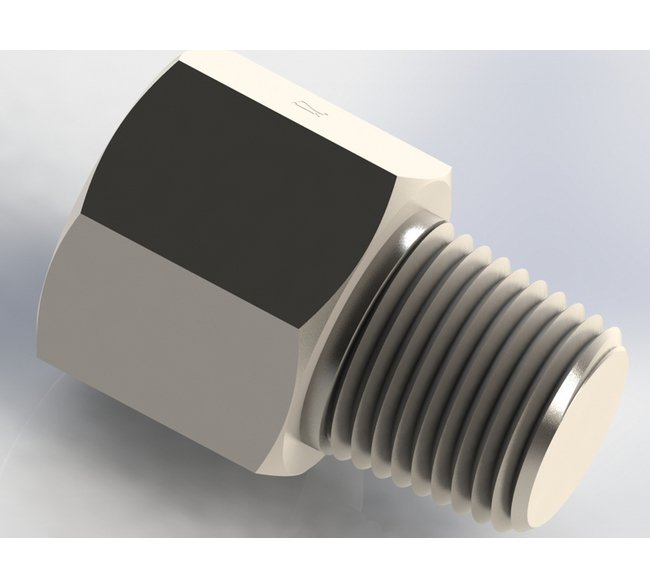

The Precision Pressure Snubber NPT Pipe Adapter effectively reduces fluid flow rate into pressure instruments, dampening shock and pressure fluctuations with its precise orifice design. Crafted from 303 SS, this adapter ensures durability and longevity in demanding applications. With an orifice diameter range from 0.004" to 0.020", it caters to various system requirements based on chamber size, fluid viscosity, and system response time. Ideal for pressure gauges, measuring instruments, air/hydraulic piloted valves, and fluid actuators, this adapter provides reliable flow control and stability.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.0040 in
Dimensions Total Length
1.690 in
Dimensions Width Across Flats Hex
1 1/16 in
Specifications Connection A
1/2" NPT Male
Specifications Connection B
1/2" NPT Female
Specifications Cv
0.00035
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
