The Precision Pull Back Collet Chuck from the CB-NB series features a Pull Back design for optimal clamping efficiency and rigidity. With a low profile OD and radial adjusting screws for precise alignment, this chuck ensures maximum tool clearance and accuracy within .0002â. Hardened components, a lubricated for life design, and a clamping force of 23,605 lbs make it ideal for high-performance machining applications.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

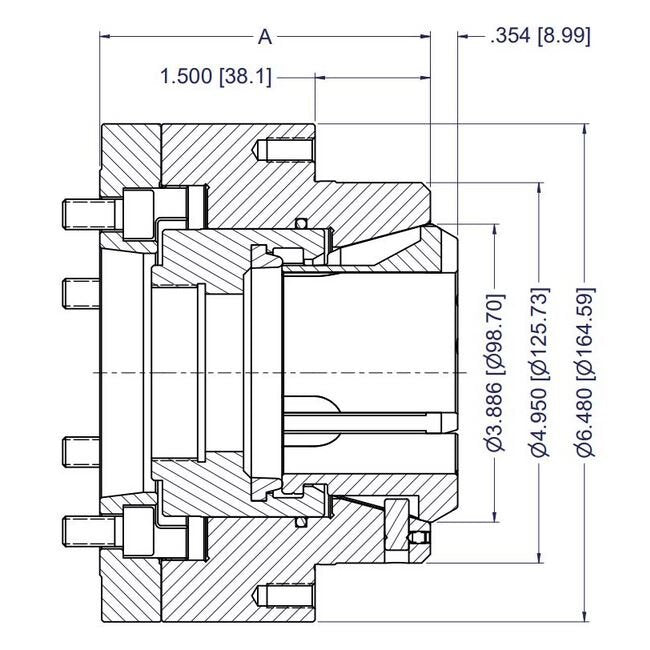

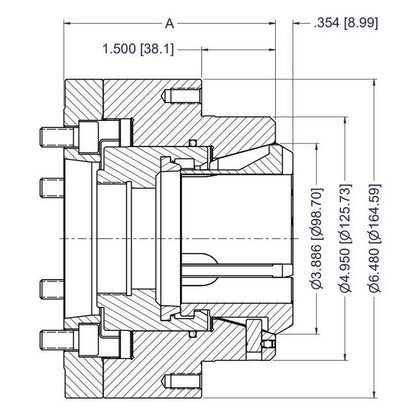

Specifications A Dimension
4.103 in | 104.22 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 300
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M70x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Weight
24.91 lb | 11.3 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
