The Precision Pull Back Collet Chuck from the CB-NB series offers unparalleled efficiency and accuracy in clamping systems. Designed with a Pull Back feature that focuses forces towards the spindle, it ensures maximum rigidity and precision. The low-profile OD and radial adjusting screws allow for precise chuck assembly, with minimal maintenance requirements. With hardened components and a lubricated-for-life design, this collet chuck guarantees long-lasting accuracy and performance.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

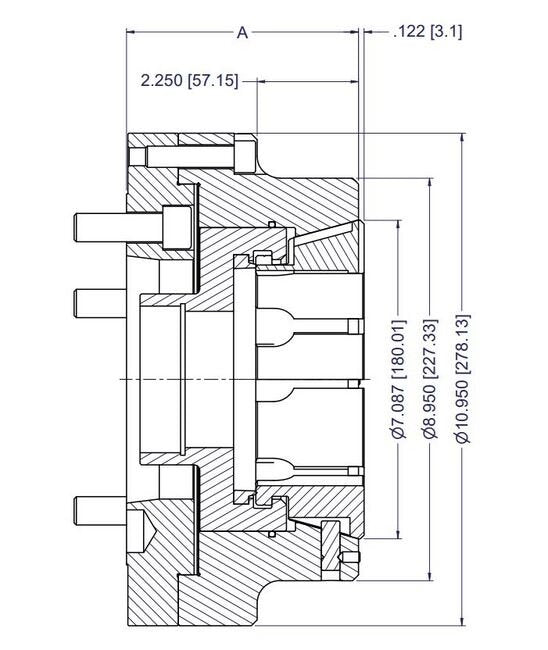

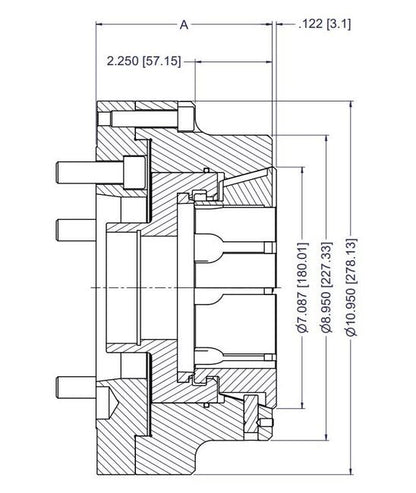

Specifications A Dimension
5.5 in | 139.7 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications Item No
15 120 201
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
72.6 lb | 33 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
