Precision Pull Back Collet Chuck - CB-NK Combination Design
Precision Pull Back Collet Chuck - CB-NK Combination Design
SKU:QUI-35f113
Enhance precision and adaptability with the CB-NK Pull Back Collet Chuck - ideal for bar and chucking applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Precision Pull Back Collet Chuck - CB-NK Combination Design
$799.99
Quantity: 1
Claim Your Seller Account
Precision Pull Back Collet Chuck - CB-NK Combination Design
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

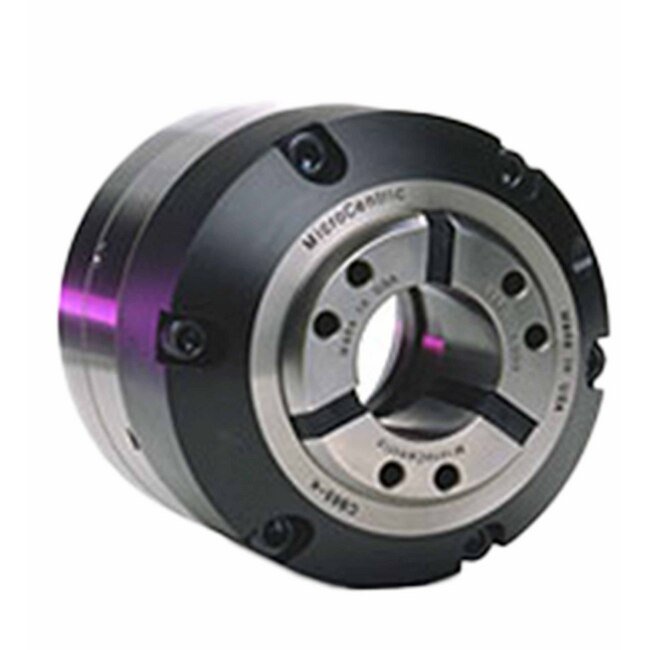

The Precision Pull Back Collet Chuck CB-NK series features a versatile pull-back design that allows for seamless conversion from bar to chucking applications. With a focus on efficiency and accuracy, this chuck concentrates all forces towards the spindle, ensuring maximum clamping force. Its low profile design provides increased tool clearance while the radial adjusting screws enable precise chuck assembly alignment within 0.0002”. Lubricated-for-life and hardened components guarantee minimal maintenance and long-lasting accuracy. Removable stop plates and housings further enhance its adaptability for various chucking applications.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

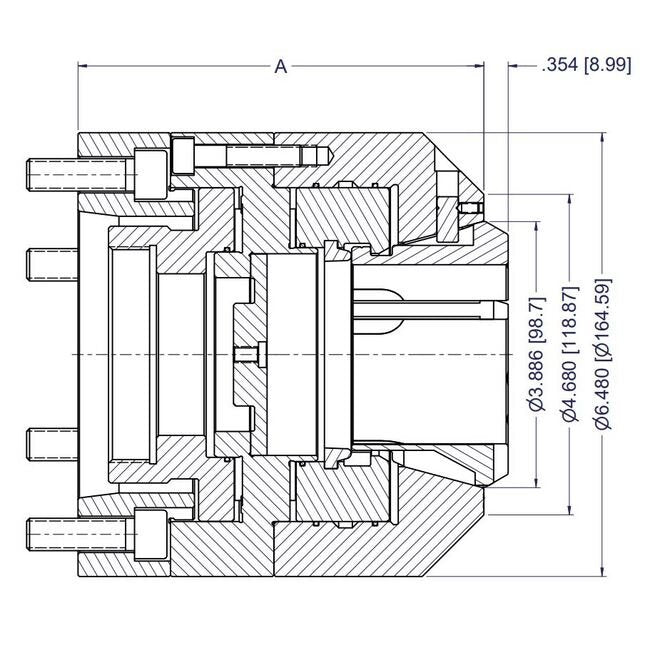

Specifications A Dimension
5.178 in | 131.52 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 163
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M72x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Through Capacity
2.245 in | 57 mm
Specifications Weight
35.99 lb | 16.32 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
