Precision QC Chuck Jaw Turning Fixtures
Precision QC Chuck Jaw Turning Fixtures
SKU:PRE-f4e6d4
Optimize machining production capacity with our Precision QC Chuck Jaw Turning Fixtures for precise and efficient jaw operations.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Precision QC Chuck Jaw Turning Fixtures
$149.99
Quantity: 1
Claim Your Seller Account
Precision QC Chuck Jaw Turning Fixtures
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

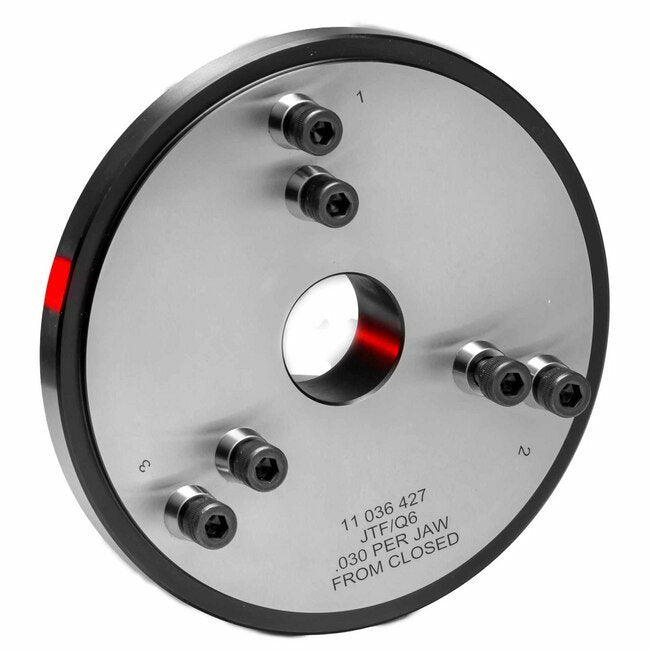

The Precision QC Chuck Jaw Turning Fixtures are designed to precisely mirror the locating pattern of a QC chuck, allowing for off-line rough and/or finish blank QC top jaw operations. With a chuck size of 6 inches and an outside diameter of 6.5 inches, these fixtures optimize machine production capacity by clamping jaws at the middle of the chuck's stroke. Custom clamping positions are available upon request, enhancing adaptability for various machining needs.
Product Specifications
Specifications Chuck
6 inch
Specifications Item No
11 030 XXX
Specifications Ordering Information
Model of chuck must be specified when ordering.
Specifications Outside Dia
6.5 in | 165.1 mm
Specifications Thickness
1.125 in | 28.6 mm
