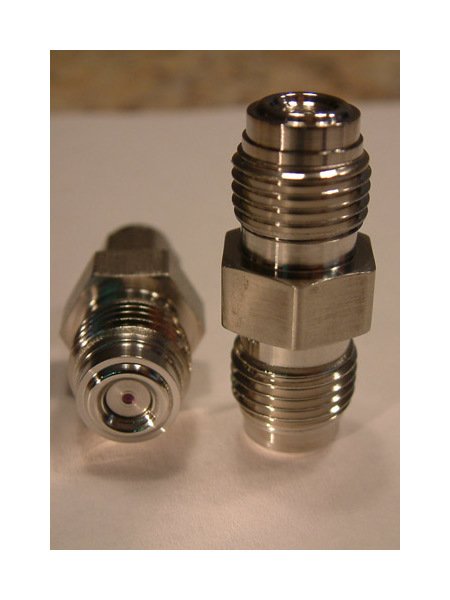

Precision RB82046 Stainless Steel Orifice Union
Precision RB82046 Stainless Steel Orifice Union
SKU:ORI-8b76c4
High-precision stainless steel orifice union for reliable face seal applications. Offers durability, accuracy, and repeatability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Precision RB82046 Stainless Steel Orifice Union
$34.99
Quantity: 1
Claim Your Seller Account
Precision RB82046 Stainless Steel Orifice Union
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision RB82046 Series Stainless Steel Orifice Union is designed for face seal applications, offering exceptional durability and precision. Made from high-grade stainless steel, this double male union ensures optimal performance even under elevated pressures. Available with three orifice styles and orifice sizes ranging from 0.0004" to 0.081", this union guarantees accuracy, repeatability, and low flow requirements. Laser drilled and wire lapped with a sharp edge ruby straight-hole design, it provides unmatched roundness, surface finish, and sharp edges for superior functionality.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0330 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
