Precision Rectangle Flat Washer
Precision Rectangle Flat Washer
SKU:SSP-766eb4
Precision washer for precise shaft alignment in shaped profiles, manufactured with advanced stamping equipment.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Precision Rectangle Flat Washer
$12.99
Quantity: 1
Claim Your Seller Account
Precision Rectangle Flat Washer
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Rectangle Flat Washer is designed for applications requiring precise control over shaft/axle alignment within shaped profiles. Manufactured using advanced stamping production equipment, this washer ensures exact orientation for hardware and components. With a wide range of machining and secondary operation equipment available, custom shapes and profiles can be fabricated to meet specific project requirements. Contact us with your design specifications for a tailored solution.
Product Specifications

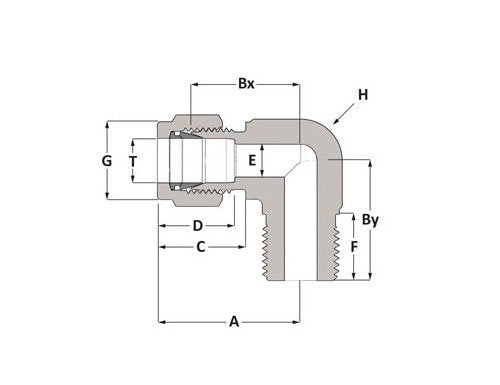

Dimensions A
38.0 mm
Dimensions Bx
27.9 mm
Dimensions By
30.2 mm
Dimensions C
22.0 mm
Dimensions D
24.4 mm
Dimensions E
9.5 mm
Dimensions F
14.4 mm
Dimensions G
15/16 in | 24 mm
Dimensions H
15/16 in | 24 mm
Dimensions P
3/8 in
Dimensions T
16 mm
Specifications Body Material
Alloy 400
Specifications Brand Series
Duolok
Specifications Connection 1 Size
16 mm
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Male BSPT
Specifications End Connections
TF x Male BSPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape

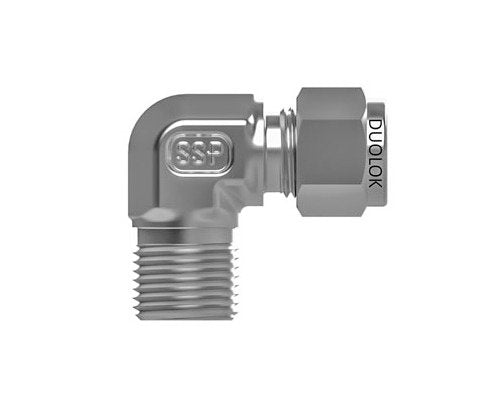

Elbow
Category 6
Duolok® Tube Fittings
