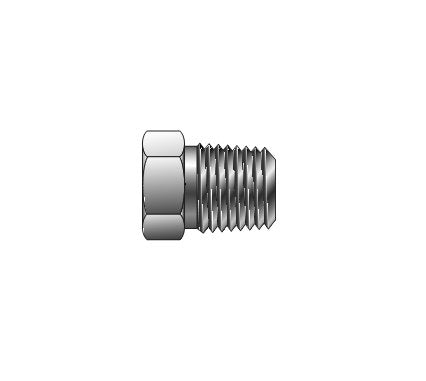

Precision Reducing Bushing RB - Industrial Pipe Fitting
Precision Reducing Bushing RB - Industrial Pipe Fitting
SKU:FIT-e0e3ed
High-quality Precision Reducing Bushing RB for leak-free industrial connections. ANSI standard-compliant and durable for various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Reducing Bushing RB - Industrial Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Precision Reducing Bushing RB - Industrial Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Reducing Bushing RB is a high-quality industrial pipe fitting meticulously designed for precise instrumentation applications. Manufactured by Parker Hannifin in the USA, these fittings ensure leak-free connections essential for process control and instrumentation. Engineered from top-grade materials like steel and brass, the Precision Reducing Bushing RB offers exceptional working pressure capacities, meeting ANSI standards. With precise dimensions and superior construction, this fitting guarantees reliability and longevity in a wide range of industrial settings.
Ready to Grow Without Cash Flow Constraints?

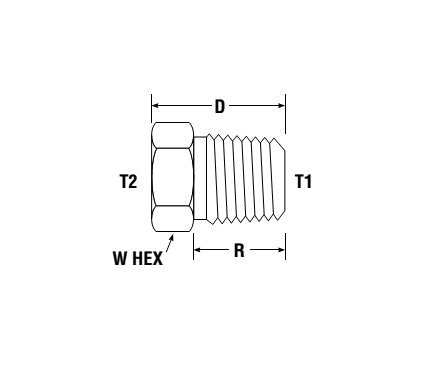

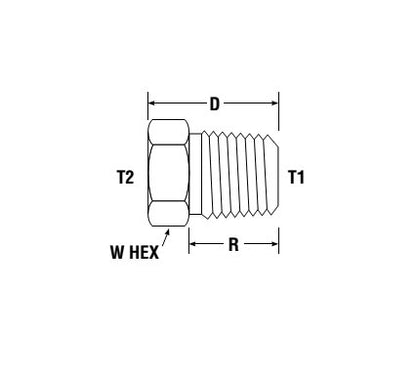

Product Specifications
Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.36 in
Dimensions Npt Thread Female T2
1/4
Dimensions Npt Thread Male T1
1
Dimensions R
.94 in
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
4600 psig
Dimensions Working Pressure Steel
4900 psig
Dimensions W Hex
1 3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
