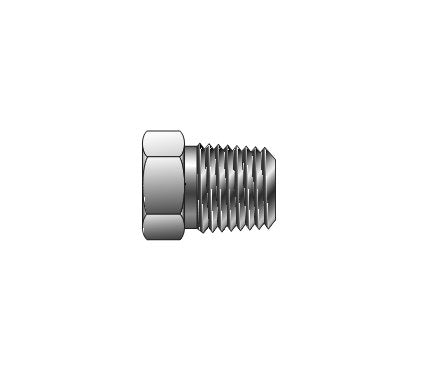

Precision Reducing Bushing RB - Instrument Pipe Fittings
Precision Reducing Bushing RB - Instrument Pipe Fittings
SKU:FIT-4e3ed6
Enhance instrumentation systems with leak-free Precision Reducing Bushing RB by Parker for reliable and high-pressure connections.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Precision Reducing Bushing RB - Instrument Pipe Fittings
$23.99
Quantity: 1
Claim Your Seller Account
Precision Reducing Bushing RB - Instrument Pipe Fittings
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Reducing Bushing RB by Parker is meticulously engineered for instrumentation applications in industrial settings. Made from high-quality steel and brass, these leak-free fittings provide reliable connections for process control and instrumentation requirements. With superior working pressures, strict adherence to ANSI standards, and construction from precision-machined forgings and bar stock, these fittings ensure durability and performance in demanding environments. Enhance your system's efficiency and reliability with Parker's Precision Reducing Bushing RB.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

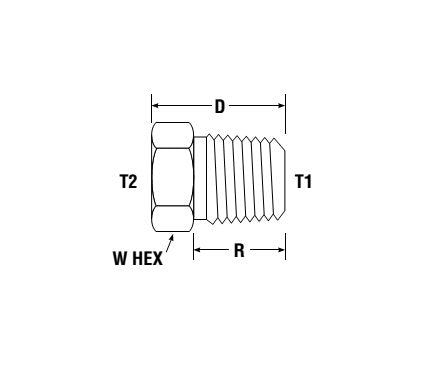

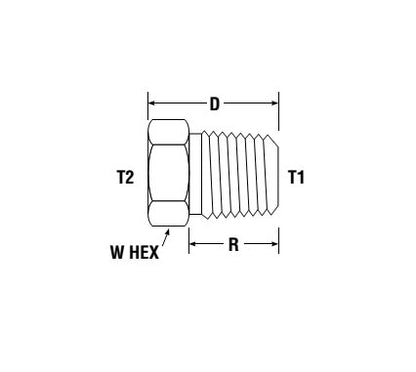

Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.47 in
Dimensions Npt Thread Female T2
3/4
Dimensions Npt Thread Male T1
1 1/4
Dimensions R
.97 in
Dimensions Working Pressure Brass
2000 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
1 3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
