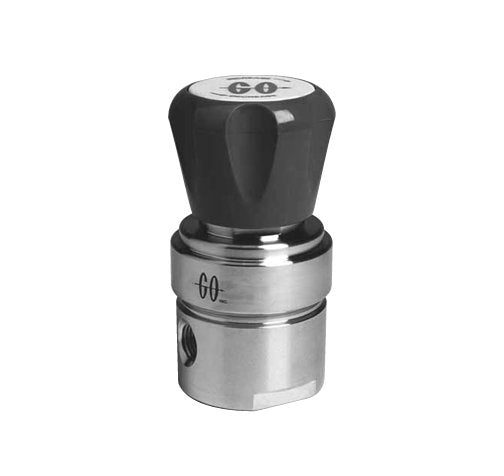

Precision Regulator PR-1 316 Stainless Steel - Standard Flow Cv 0.06 Single Stage
Precision Regulator PR-1 316 Stainless Steel - Standard Flow Cv 0.06 Single Stage
SKU:GOP-2dead6
Achieve precise pressure control with the Precision Regulator PR-1 Series. Stainless Steel construction, Cv 0.06, and adjustable pressures up to 750 psig.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Precision Regulator PR-1 316 Stainless Steel - Standard Flow Cv 0.06 Single Stage
$189.99
Quantity: 1
Claim Your Seller Account
Precision Regulator PR-1 316 Stainless Steel - Standard Flow Cv 0.06 Single Stage
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Regulator PR-1 Series offers unmatched versatility and precision in pressure regulation, catering to the diverse needs of instrumentation sample systems and semiconductor processing gases. Crafted with 316L Stainless Steel and featuring a slew of advanced components like INCONEL® diaphragms, PTFE seat material, and adjustable outlet pressure ranges up to 750 psig, this regulator excels in controlling pressures for gas or liquid services. With a Cv of 0.06, stainless steel cap, and SSA adjusting screw, the PR-1 ensures reliable performance at inlet pressures of up to 6000 psig and temperatures ranging from -40°F to +500°F. Trust in the PR-1 Series for precise pressure control and exceptional durability.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 50 psig

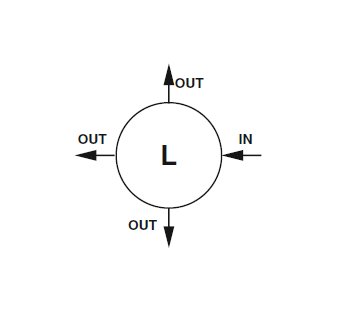

Specifications Port Configuration
L - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
