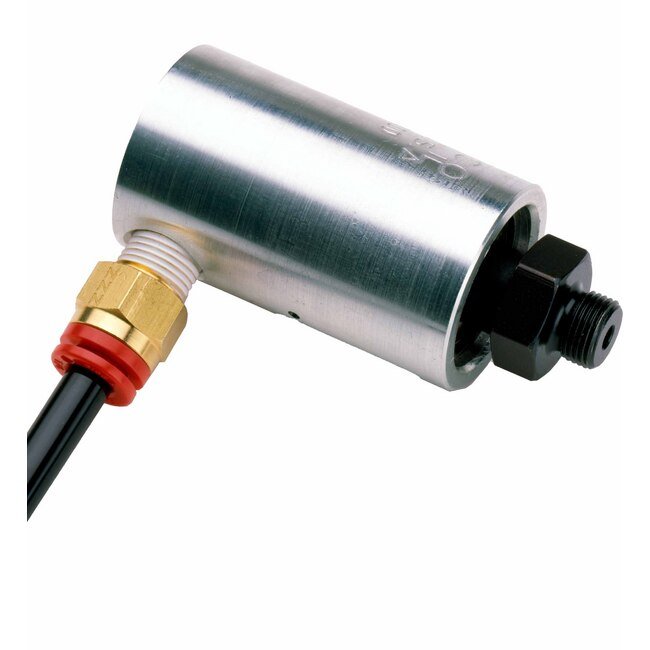

Precision Rotary Union for Air Tube Assemblies
Precision Rotary Union for Air Tube Assemblies
SKU:PRE-f8c562
Precision Rotary Union for supplying coolant or air through air tube assemblies. Max air pressure: 150 psi, Max speed: 6,000 rpm.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Precision Rotary Union for Air Tube Assemblies
$89.99
Quantity: 1
Claim Your Seller Account
Precision Rotary Union for Air Tube Assemblies
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Rotary Union is essential for supplying coolant or air through the air tube assembly, ensuring optimal performance with AL-Automatic Lubrication systems. Designed to be mounted seamlessly to LDZ Air Cylinders, this rotary union features a 1/8"-27 NPT inlet port fitting size and a 3/8" - 32 UNEF rotor thread. With a maximum air pressure of 150 psi and a maximum speed of 6,000 rpm, it is compatible with Model 50 Rotating Air Tubes. The rotary union, item no. 11 010 010, threads into the rear of the air tube and includes hoses and fittings for easy installation.
Product Specifications
Specifications Air Tube Model
Model 50, Rotating Air Tubes
Specifications Fitting Size Inlet Port
1/8"-27 NPT
Specifications Item No
11 010 010
Specifications Max Air Pressure
150 psi | 10 kg/cm²
Specifications Max Speed
6,000 rpm
Specifications Rotor Thread
3/8" - 32 UNEF
