Precision Rotary Union for Air Tube Assemblies
Precision Rotary Union for Air Tube Assemblies
SKU:PRE-ca455b
Ensure precise coolant or air supply with our Precision Rotary Union for Air Tube Assemblies. Enhance machine spindle functionality effortlessly!
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Precision Rotary Union for Air Tube Assemblies
$89.99
Quantity: 1
Claim Your Seller Account
Precision Rotary Union for Air Tube Assemblies
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

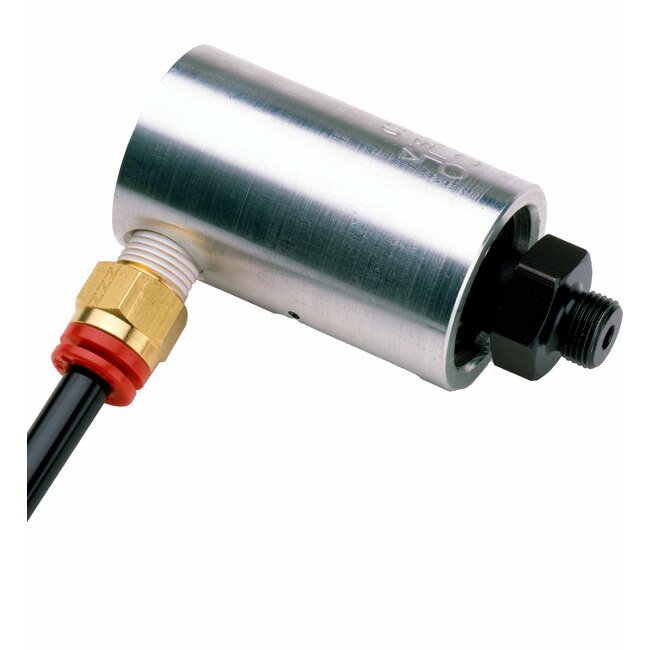

The Precision Rotary Union for Air Tube Assemblies is a critical component designed to supply coolant or air through the air tube assembly. With a Fitting Size of 1/4"-18 NPT and a Rotor Thread of 5/8" - 18 UNF, this rotary union ensures a seamless flow at a Max. Air Pressure of 150 psi. Operating at a maximum speed of 4,000 rpm, it is compatible with Model 82 Rotating Air Tubes, offering high-performance and reliability. It can be effortlessly mounted to LDZ Air Cylinders, enhancing machine spindle functionality for workholding fixtures. The set includes a hose and fittings for convenient installation and operation.
Product Specifications
Specifications Air Tube Model
Model 82, Rotating Air Tubes
Specifications Fitting Size Inlet Port
1/4"-18 NPT
Specifications Item No
11 010 020
Specifications Max Air Pressure
150 psi | 10 kg/cm²
Specifications Max Speed
4,000 rpm
Specifications Rotor Thread
5/8" - 18 UNF
