High-quality Precision Rotating Air Tubes Assembly for MicroCentric air chucks, with durable design and customizable length. Ideal for precision machining applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Precision Rotating Air Tubes Assembly
$129.99
Quantity: 1
Claim Your Seller Account
Precision Rotating Air Tubes Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

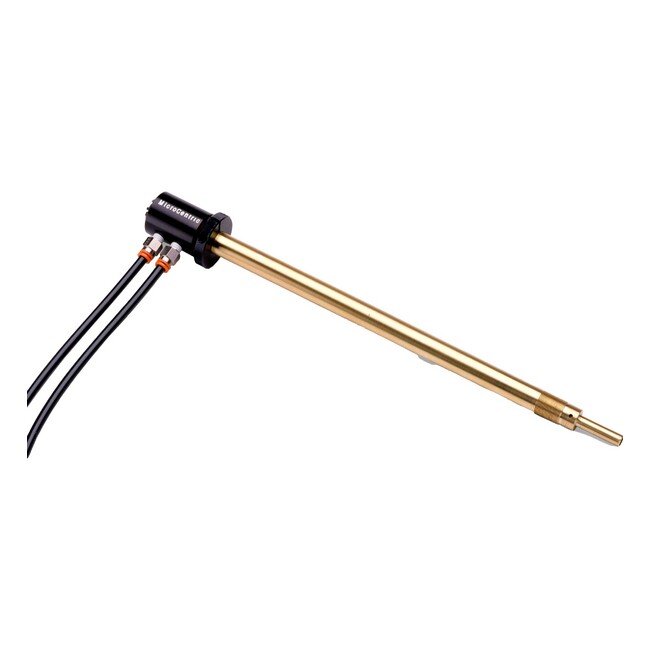

The Precision Rotating Air Tubes Assembly is specifically designed for optimal performance with all rotating MicroCentric air chucks. Featuring a hardened steel journal and maintenance-free oil-lite bearing, this rotary air coupling ensures durability and smooth operation. Each assembly includes a blank support bushing, air hoses, and fittings, with the option to specify the desired length for a customized fit to your application. With dimensions meeting industry standards and a maximum speed of 6,000 RPM, this assembly is a reliable choice for precision machining applications.
Product Specifications

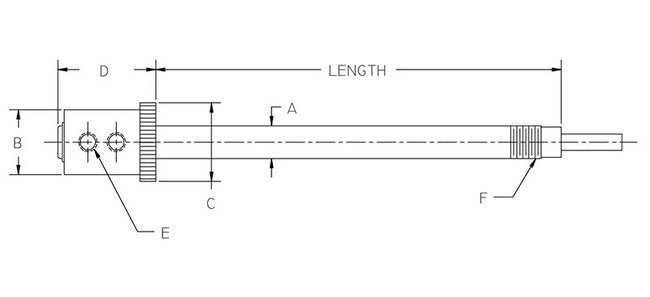

Specifications A Dimension
.375 in | 9.5 mm
Specifications B Dimension
1.00 in | 25.4 mm
Specifications Chucks Used With
3-50
Specifications C Dimension
1.25 in | 31.8 mm
Specifications D Dimension
1.87 in | 47.5 mm
Specifications E Dimension
#10-32 UNF
Specifications F Dimension
3/8"-32 UNF
Specifications Item No
09 030 000X
Specifications Max Speed
6,000
Specifications Ordering Information
Length of air tube to be specified when ordering.
