Precision Round Negative Blank with Hole, 0.193/0.199 in
Precision Round Negative Blank with Hole, 0.193/0.199 in
SKU:TUR-2b2185
Achieve precision turning with the Round Negative Blank. 0.193/0.199 in thickness, customizable grade availability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Round Negative Blank with Hole, 0.193/0.199 in
$29.99
Quantity: 1
Claim Your Seller Account
Precision Round Negative Blank with Hole, 0.193/0.199 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Round Negative Blank with Hole is crafted for exceptional turning performance. With a precise dimensional specification of 0.193/0.199 in thickness, 75º angle, and a hole diameter of 0.213/0.219, this blank ensures accuracy and consistency in machining operations. Grade availability is customizable upon request, meeting diverse project needs.

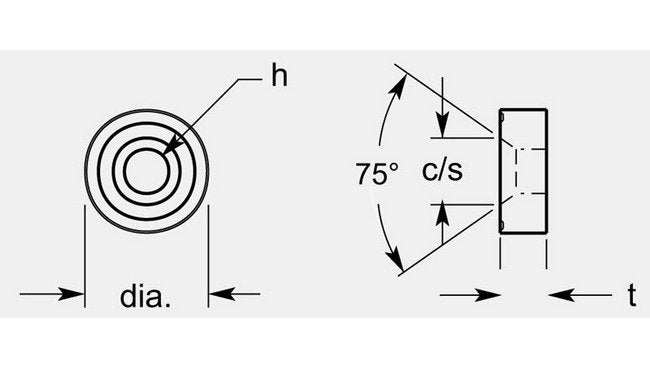

Product Specifications
Dimensional Specification Angle A
75 º
Dimensional Specification Cs
0.313 / 0.319 in
Dimensional Specification Dia
0.514 / 0.520 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Thickness T
0.193 / 0.199 in
Grade Availability Grade Availability
Available on Request
