Precision Round Negative with Hole and Countersink, 1.020/1.030 in
Precision Round Negative with Hole and Countersink, 1.020/1.030 in
SKU:TUR-66b9f8
Experience precision machining with our versatile Round Negative for Turning Blanks. Diameter: 1.020/1.030 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Round Negative with Hole and Countersink, 1.020/1.030 in
$29.99
Quantity: 1
Claim Your Seller Account
Precision Round Negative with Hole and Countersink, 1.020/1.030 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Round Negative with Hole and Countersink is crafted for exceptional turning performance. With thickness ranging from 0.266 to 0.272 inches, an 82-degree angle, and a precise hole measuring 0.275 to 0.281 inches, this product ensures accuracy and efficiency in machining tasks. The countersink diameter of 0.556 to 0.562 inches guarantees smooth operations. Grade availability can be tailored to meet specific requirements upon request.

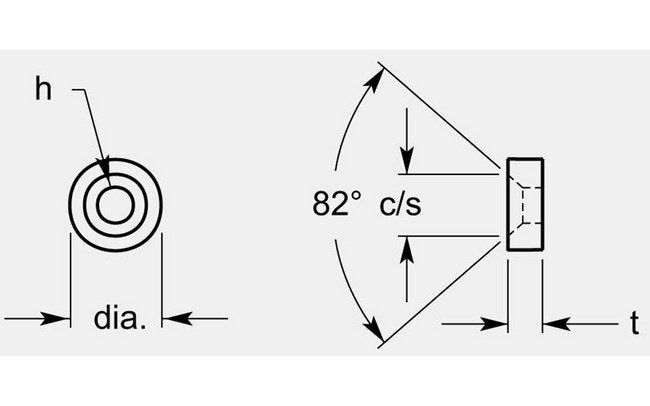

Product Specifications
Dimensional Specification Angle A
82 º
Dimensional Specification Cs
0.556 / 0.562 in
Dimensional Specification Dia
1.020 / 1.030 in
Dimensional Specification Hole
0.275 / 0.281 in
Dimensional Specification Thickness T
0.266 / 0.272 in
Grade Availability Grade Availability
Available on Request
