Highly precise Sealed Air Chucks with stainless steel cover for contamination prevention, ideal for high volume operations.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Precision Sealed Air Chucks
$349.99
Quantity: 1
Claim Your Seller Account
Precision Sealed Air Chucks
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

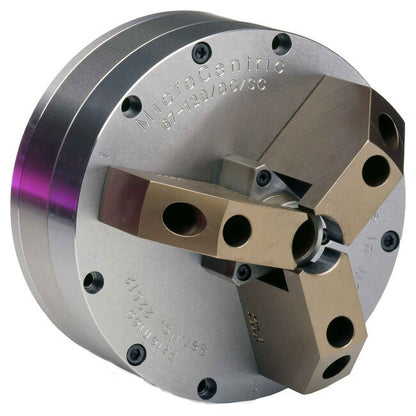

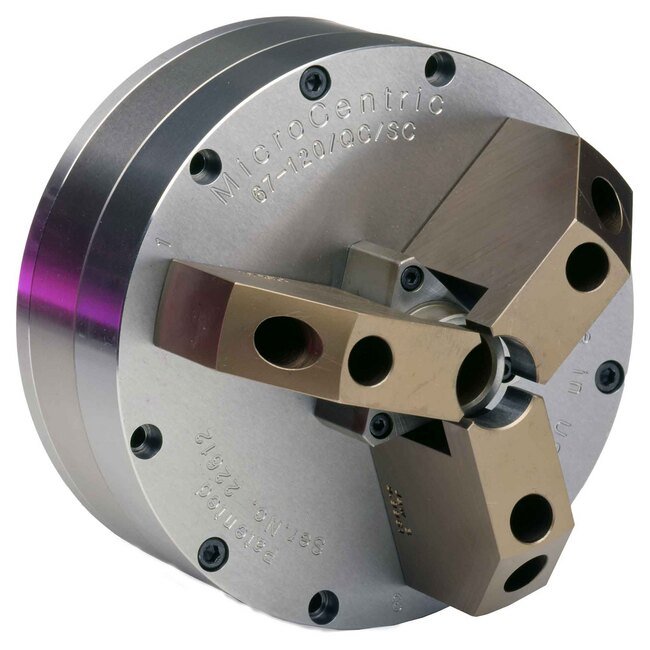

The Precision Sealed Air Chucks are meticulously designed with a stainless steel cover to safeguard the jaw slides, preventing grit and swarf contamination. Ideal for high volume production, these chucks come in rotating and stationary configurations, perfect for cylindrical grinding and machining abrasive materials like powdered metal, ceramic, or carbide. With Chuck Accuracy at .00005" (0.0012mm) TIR as standard, these chucks offer exceptional precision. The QC precision top jaw system further enhances performance for demanding operations.
Product Specifications
Options For Microcentric Chucks Bp Back Ported Option
Air passages through the back cover provides a hole in the center of the chuckFor applications where the workpiece must be swallowed into the center of the chuck. The BP design also enables housings with part stops or parts ejectors to be mounted into the ID of the chuck.Air is typically supplied to BP chucks through the mounting plate which can be supplied with the chuck.
Options For Microcentric Chucks Up Ultra Precision Option
Repeating accuracy to .000020" (0.0005mm) TIRFor applications which require extremely close chucking accuracy, MicroCentric will selectively fit and certify a chuck to an accuracy of .000050" (0.001mm) or .000020" (0.0005mm) depending on model.Note that temperature variations, changes in air pressure, spindle runout, and the condition and design of top jaws will affect chuck accuracy.
Specifications Chuck Accuracy
.00005 in | .0012 mm
Specifications Chuck Size
4 in | 100 mm
Specifications Chuck Weight
9.5 lb | 4.3 kg
Specifications Item No
06 041 302
Specifications Jaw Stroke
.120 in | 3.0 mm
Specifications Max Air Pressure
100 psi | 0.7 MPa
Specifications Max Clamp Force
2,710 lbs | 12.1 kN
Specifications Max Rpm
6,000
Specifications No Of Jaws
3
