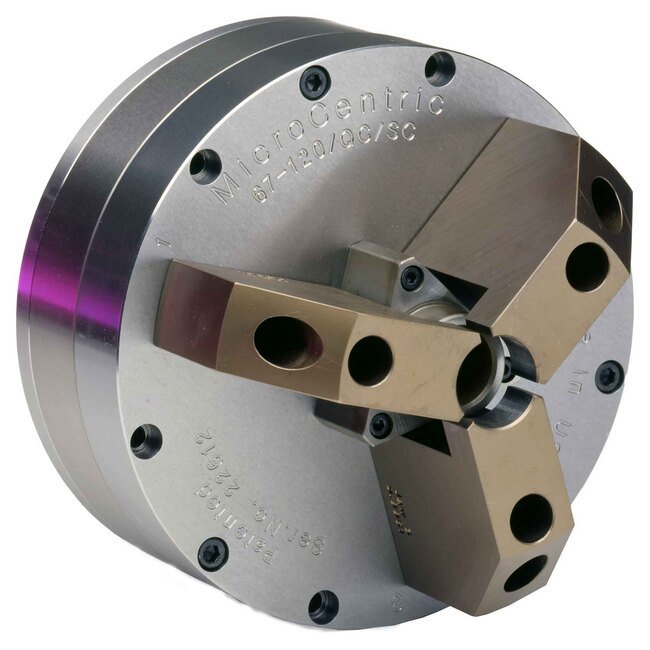

The Precision Sealed Air Chucks feature a stainless steel cover to guard against contamination, making them ideal for high-volume production environments. Available in rotating and stationary configurations, these chucks offer superior accuracy with chuck accuracy levels of .00005" (0.0012mm) TIR. With a max rpm of 4,000 and a max clamp force of 5,710 lbs, these chucks excel in cylindrical grinding and machining abrasive materials like powdered metal, ceramic, or carbide. The included QC precision top jaw system enhances precision and efficiency, making them a top choice for industrial applications.
Product Specifications
Options For Microcentric Chucks Bp Back Ported Option
Air passages through the back cover provides a hole in the center of the chuckFor applications where the workpiece must be swallowed into the center of the chuck. The BP design also enables housings with part stops or parts ejectors to be mounted into the ID of the chuck.Air is typically supplied to BP chucks through the mounting plate which can be supplied with the chuck.
Options For Microcentric Chucks Up Ultra Precision Option
Repeating accuracy to .000020" (0.0005mm) TIRFor applications which require extremely close chucking accuracy, MicroCentric will selectively fit and certify a chuck to an accuracy of .000050" (0.001mm) or .000020" (0.0005mm) depending on model.Note that temperature variations, changes in air pressure, spindle runout, and the condition and design of top jaws will affect chuck accuracy.
Specifications Chuck Accuracy
.00005 in | .0012 mm
Specifications Chuck Size
6 in | 150 mm
Specifications Chuck Weight
20.4 lb | 9.3 kg
Specifications Item No
06 061 302
Specifications Jaw Stroke
.120 in | 3.0 mm
Specifications Max Air Pressure
100 psi | 0.7 MPa
Specifications Max Clamp Force
5,710 lbs | 25.4 kN
Specifications Max Rpm
4,000
Specifications No Of Jaws
3
