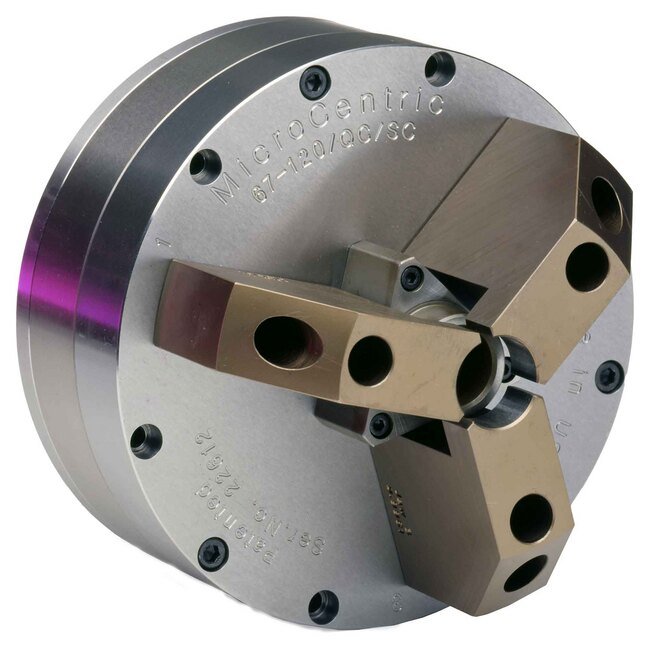

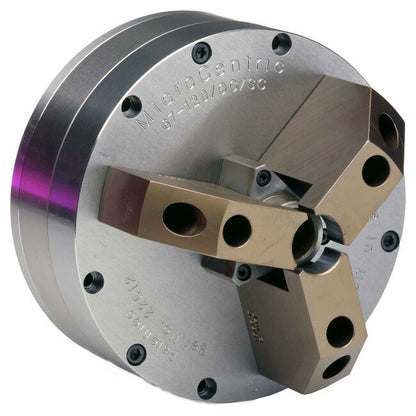

The Precision Sealed Air Chucks with a stainless steel cover are designed to seal the jaw slides effectively, preventing contamination from grit and swarf. Ideal for high-volume production, these chucks require minimal maintenance. Available in rotating and stationary configurations, they are perfect for cylindrical grinding and machining abrasive materials like powdered metal, ceramic, or carbide. The QC precision located top jaw system ensures Chuck Accuracy of .00005" TIR as standard, with an option for .00002" TIR, providing exceptional precision for diverse industrial applications.
Product Specifications
Options For Microcentric Chucks Bp Back Ported Option
Air passages through the back cover provides a hole in the center of the chuckFor applications where the workpiece must be swallowed into the center of the chuck. The BP design also enables housings with part stops or parts ejectors to be mounted into the ID of the chuck.Air is typically supplied to BP chucks through the mounting plate which can be supplied with the chuck.
Options For Microcentric Chucks Up Ultra Precision Option
Repeating accuracy to .000020" (0.0005mm) TIRFor applications which require extremely close chucking accuracy, MicroCentric will selectively fit and certify a chuck to an accuracy of .000050" (0.001mm) or .000020" (0.0005mm) depending on model.Note that temperature variations, changes in air pressure, spindle runout, and the condition and design of top jaws will affect chuck accuracy.
Specifications Chuck Accuracy
.00005 in | .0012 mm
Specifications Chuck Size
3 in | 80 mm
Specifications Chuck Weight
4.2 lb | 1.9 kg
Specifications Item No
06 030 302
Specifications Jaw Stroke
.050 in | 1.3 mm
Specifications Max Air Pressure
100 psi | 0.7 MPa
Specifications Max Clamp Force
1,520 lbs | 6.8 kN
Specifications Max Rpm
6,000
Specifications No Of Jaws
3
