Precision Shaft Rotary Position Sensor - SP 2800 Series
Precision Shaft Rotary Position Sensor - SP 2800 Series
SKU:SP2-8ed79a
Highly robust, precision shaft rotary position sensor designed for demanding applications. IP67 sealed, easy mounting, and ultra-reliable performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Precision Shaft Rotary Position Sensor - SP 2800 Series
$99.99
Quantity: 1
Claim Your Seller Account
Precision Shaft Rotary Position Sensor - SP 2800 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Shaft Rotary Position Sensor from the SP 2800 Series is a highly robust potentiometer designed for demanding industrial and mobile applications. With an excellent lifetime of over 50 million movements, this sensor offers single channel or fully electrically redundant options for enhanced reliability. Featuring a stainless steel shaft, conductive plastic resistance element, and elastomer damped wipers, it ensures precise and durable performance. The sensor is IP67 sealed, resistant to a wide temperature range, and offers easy mounting with mechanical adjustment, making it a top choice for institutions seeking ultra-reliable sensors.
Product Specifications
Specifications Cable Length
1,000 mm
Specifications Cable Type
Raychem 55, 22 AWG
Specifications Continuous Mechanical Angles
360 º
Specifications Coupling Type
Push-on Coupling
Specifications Defined Electrical Angle
08 º | 100 º | 345 º
Specifications Defined Electrical Angle Tolerance
2
Specifications Dielectric Strength 50 Hz 2 S 1 Bar 500 Vac
= 100 µA
Specifications Electrical Angle
130
Specifications Electrical Connections Standard

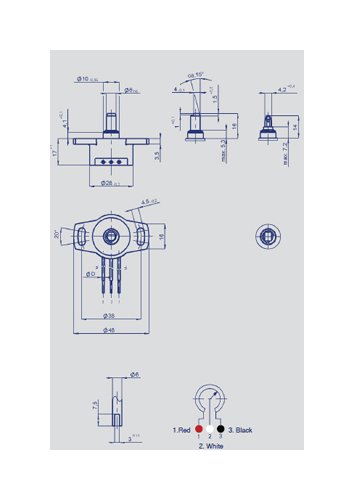

1 = red, 2 = white, 3 = black | 1-channel: 3 conductors | Diameter = 2.1 mm | l=1000 mm | Raychem 55
Specifications Housing And Bearing
High-grade | Temperature-resistant plastic
Specifications Housing Material
Duraplast
Specifications Insulation Resistance 500 Vdc 1 Bar 2 S
= 10 MO
Specifications Life
> 50x106 Movements
Specifications Linearity
0.5 %
Specifications Maximum Allowed Wiper Current In Case Of Malfunct
10 mA
Specifications Maximum Dynamic Shaft Loading Axial And Radial
20 N
Specifications Maximum Operational Speed
120 rpm
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Static Shaft Loading Axial And Radial
20 N
Specifications Maximum Torque For Mounting Screws With Washer
180 N·cm
Specifications Mounting
2 fillister head screws M4 with washers
Specifications Mounting Position
Any Orientation
Specifications Nominal Resistance
3 kO | 5 kO
Specifications Protection Class
IP67
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
0.01 %
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shaft
Stainless Steel
Specifications Special Features
Highly robust potentiometer for demanding industrial and mobile applications | Excellent lifetime - in excess of 50 million movements | Single channel or fully electrically redundant | Easy mounting and mechanical adjustment | Excellent price/performance ratio | Plastic or aluminum housing | Wide temperature range | Elastomer damped wipers | Sealed to IP 67 | Two shaft styles, including easy “push-on” coupling
Specifications Temperature Range
-40 to 150 º C
Specifications Effective Temperature Coefficient Of The
5 ppm/K
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 mm | amax = 20 g
Specifications Weight
30 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
