Precision Shaft-Type Rotary Position Sensor - SP 2800 Series
Precision Shaft-Type Rotary Position Sensor - SP 2800 Series
SKU:SP2-ebee44

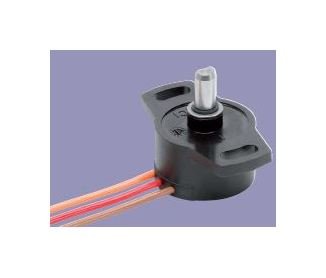

Achieve precision and reliability with the SP 2800 Series Rotary Position Sensor for industrial and mobile applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Precision Shaft-Type Rotary Position Sensor - SP 2800 Series
$79.99
Quantity: 1
Claim Your Seller Account
Precision Shaft-Type Rotary Position Sensor - SP 2800 Series
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial and mobile applications with the SP 2800 Series Precision Shaft-Type Rotary Position Sensor. Built for reliability with a lifetime exceeding 50 million movements, this sensor boasts high robustness and electrical redundancy. Featuring a stainless steel shaft and conductive plastic resistance element sealed to IP65 or IP54, it ensures durability in any orientation. With precise mechanical adjustments and easy mounting, this sensor offers an excellent price/performance ratio. Trust in its robust construction for demanding environments.
Product Specifications
Specifications Approximate Conductor Diameter
1 mm²
Specifications Approximate Conductor Length
300 mm
Specifications Continuous Mechanical Angles
360 º
Specifications Defined Electrical Angle
08 º | 100 º | 345 º
Specifications Defined Electrical Angle Tolerance
2
Specifications Degree Of Rotation
100 º
Specifications Dielectric Strength 50 Hz 2 S 1 Bar 500 Vac
= 100 µA
Specifications Electrical Connections Standard
1 = brown, 2 = red, 3 = orange | 1-channel: 3 conductors, diameter = 2.1 mm | 2-channel: 6 conductors, diameter = 1.6 mm | 4 = brown, 5 = red, 6 = orange | Conductors, TPE-PEE-insulation, l = 300 mm
Specifications Housing And Bearing
Hig-grade | Temperature-resistant plastic
Specifications Independent Linearity
0.3 % | 1.0 %
Specifications Insulation Resistance 500 Vdc 1 Bar 2 S
= 10 MO
Specifications Life
> 50x106 Movements
Specifications Maximum Allowed Wiper Current In Case Of Malfunct
10 mA
Specifications Maximum Dynamic Shaft Loading Axial And Radial
20 N
Specifications Maximum Operational Speed
120 rpm
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Static Shaft Loading Axial And Radial
20 N
Specifications Maximum Torque For Mounting Screws With Washer
180 N·cm
Specifications Mounting
2 fillister head screws M4 with washers
Specifications Mounting Position
Any Orientation
Specifications Nominal Resistance
3 kO | 5 kO
Specifications Protection Class
IP 54 or IP 65 (DIN 400 50 / IEC 529)
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
wit push-on coupling (shape D) < 0.06 | with 6 mm round shaft (shape B) < 0.03
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shaft
Stainless Steel
Specifications Shaft Diameter
6 mm
Specifications Special Features
Highly robust potentiometer for demanding industrial and mobile applications | Excellent lifetime - in excess of 50 million movements | Single channel or fully electrically redundant | Sealed to IP 65 or IP54 | Easy mounting and mechanical adjustment | Two shaft styles, including easy „push-on“ coupling | Excellent price/performance ratio
Specifications Temperature Range
-40 to 120 º C
Specifications Torque
0.2 (IP54) N·cm | 0.5 (IP65) N·cm
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 | amax = 20
Specifications Weight
30 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
