The Precision Single Edge Ring System by HepcoMotion is designed for optimal precision and performance in industrial applications. This system features two concentric bearings placed precisely 120º apart to ensure accurate datum referencing. The eccentric type bearings allow for easy positional adjustments, while the double eccentric design of the PRT2 bearings enables disengagement of the ring without disassembly. With options for moving elements in both the ring and bearings, this system offers versatility and efficiency. Additionally, the system can be lubricated for increased load capacity and extended service life.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

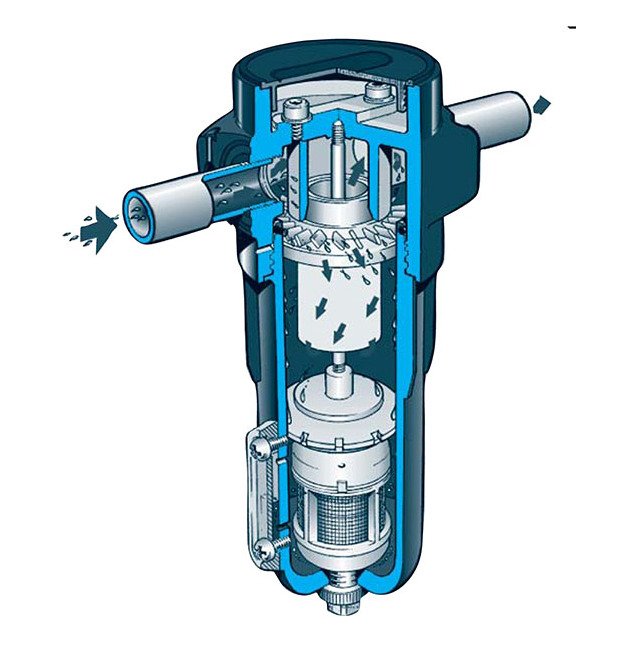

99% EfficientUnlike most moisture separators this unique design is efficient over a wide range of air flows.LightweightAluminum Construction.Reduces stresses to piping Low Pressure DropVery low differential pressure.
Financing Approve Payments
Finance with Approve Payments
Note 0

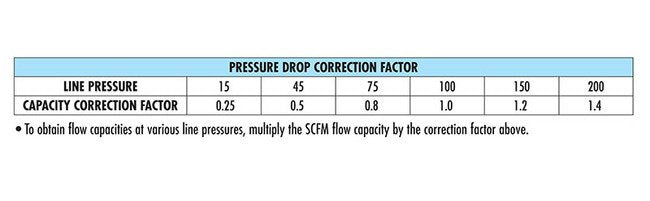

Pressure drop is 1.0 PSI at nominal flow.We reserve the right to make reasonable design changes without notice.
Performance Maximum Flow Capacity
2100 scfm
Performance Minimum Flow Capacity
1270 scfm
Performance Nominal Flow Capacity
1700 scfm

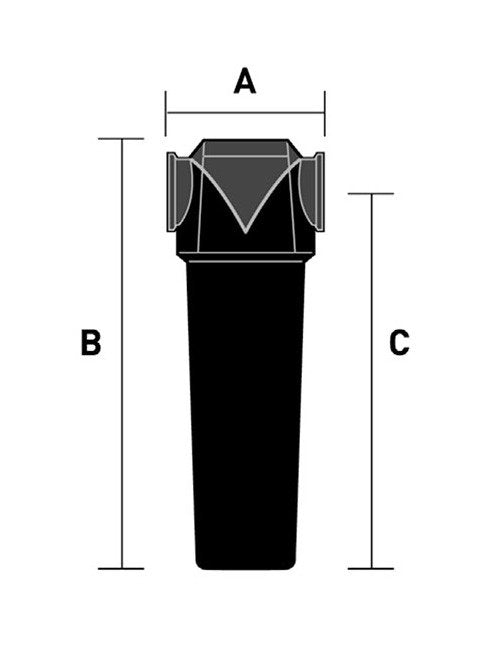

Specifications Dimension A
8.1 in
Specifications Dimension B
19.9 in
Specifications Dimension C
17.5 in
Specifications Maximum Working Pressure
250 psi
Specifications Minimum Recommended Temperature
35 ºF
Specifications Pipe Size
2 1/2 in NPT
Specifications Weight
25 lb
Technical Specifications Maximum Working Temperature
150 ºF
