Precision Sleeve Couplings with Keyways
Precision Sleeve Couplings with Keyways
SKU:ROU-74eff4
Achieve precision shaft alignment with our Steel Precision Sleeve Couplings featuring Accu-Clamp™ design for convenience and accuracy.
Regular price
$137.79
Regular price
Sale price
$137.79
Unit price
per
Initiate Order
Precision Sleeve Couplings with Keyways
$137.79
Quantity: 1
Claim Your Seller Account
Precision Sleeve Couplings with Keyways
$137.79
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

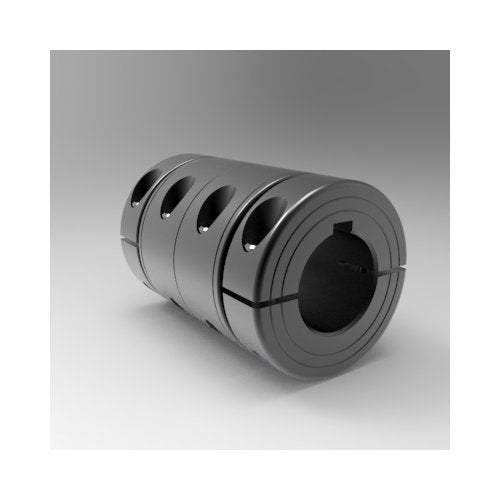

Enhance your shaft alignment accuracy with the Precision Sleeve Couplings with Keyways. Made of high-strength steel alloy, this two-piece coupling features axial runout less than .001 TIR, convenient assembly, and adjustment. The Precision Sleeve Coupling incorporates Stafford's exclusive Accu-Clamp™ design for precise shaft alignment and high clamping power. With a solid center section, standard keyways, and non-marring finish, this coupling ensures a close tolerance fit on ground shafting, protecting your shafts from damage.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Attributes Bore Size A
5/8 in
Dimensional Attributes Bore Size B
5/8 in
Dimensional Attributes Keyway A
3/16 in
Dimensional Attributes Keyway B
3/16 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.81 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
137.79 USD
Specifications Material
Steel
Specifications Part Number
5L010010FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018794
