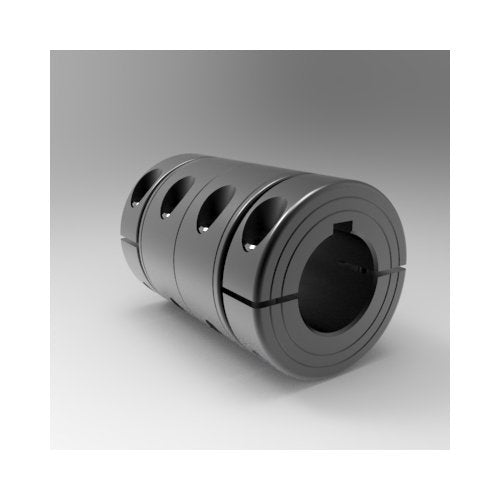

Precision Sleeve Couplings with Keyways
Precision Sleeve Couplings with Keyways
SKU:ROU-b1783f
Precision Sleeve Couplings for precise shaft alignment in high-strength steel. Self-centering clamping collars, keyways, and black oxide finish.
Regular price
$118.04
Regular price
Sale price
$118.04
Unit price
per
Initiate Order
Precision Sleeve Couplings with Keyways
$118.04
Quantity: 1
Claim Your Seller Account
Precision Sleeve Couplings with Keyways
$118.04
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance shaft alignment with our Precision Sleeve Couplings featuring a solid center section for a close tolerance fit. This two-piece design includes keyways and self-centering clamping collars for convenient assembly and adjustment. Made of high-strength steel with a black oxide finish, it offers axial runout less than .001 TIR, ensuring precise alignment and protection against shaft damage. Easy to adjust and non-marring, this coupling complies with RoHS2 and REACH standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Attributes Bore Size A
1/2 in
Dimensional Attributes Bore Size B
1/2 in
Dimensional Attributes Keyway A
1/8 in
Dimensional Attributes Keyway B
1/8 in
Dimensional Attributes Outside Diameter
1.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Total Length
1.875 in
Specifications Alloy
1215
Specifications Approximate Weight
0.47 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
118.04 USD
Specifications Material
Steel
Specifications Part Number
5L008008FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018787
