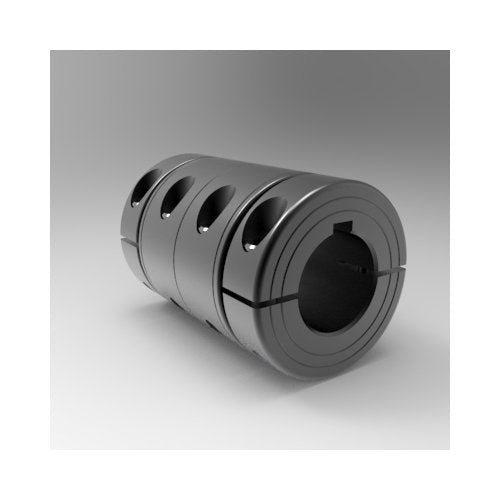

Precision Sleeve Couplings with Keyways
Precision Sleeve Couplings with Keyways
SKU:ROU-cd2f40
Upgrade to a balanced design for precise shaft alignment. High clamping power with Accu-Clamp™ technology. Made of precision machined steel.
Regular price
$180.87
Regular price
Sale price
$180.87
Unit price
per
Initiate Order
Precision Sleeve Couplings with Keyways
$180.87
Quantity: 1
Claim Your Seller Account
Precision Sleeve Couplings with Keyways
$180.87
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to a balanced design with screw heads in opposing directions for precise shaft alignment. Axial runout less than .001 TIR, convenient two-piece assembly with standard keyway. Precision machined steel with high clamping power and non-marring features. Stafford's exclusive design includes Accu-Clamp™ for self-centering clamping collars at both ends.
Product Specifications
Dimensional Attributes Bore Size A
1-1/2 in
Dimensional Attributes Bore Size B
1-1/2 in
Dimensional Attributes Keyway A
3/8 in
Dimensional Attributes Keyway B
3/8 in
Dimensional Attributes Outside Diameter
2.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.750 in
Specifications Alloy
1215
Specifications Approximate Weight
3.03 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
180.87 USD
Specifications Material
Steel
Specifications Part Number
5L108108FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018831
