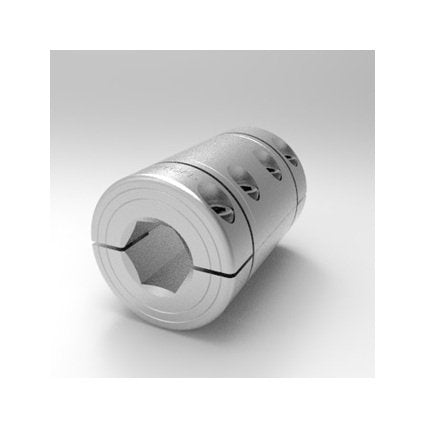

Precision Sleeve Hex Bore Couplings

Name: Precision Sleeve Hex Bore Couplings
Brand: Stafford Manufacturing Corp.
SKU: ROU-85fcec
Price: 93.11 USD
Availability: OutOfStock

SKU:ROU-85fcec

Upgrade to Precision Sleeve Hex Bore Couplings for precise hexagonal shaft alignment and high clamping power. Stainless Steel variant available.

$93.11

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Sleeve Hex Bore Couplings are part of our upgraded Accu-Clamp™ Precision Products line, featuring a balanced design with screw heads in opposing directions for enhanced performance. Designed for hexagonal shafts, these couplings ensure precise shaft alignment with axial runout less than .001" TIR. With a solid center section for a close tolerance fit on ground shafting and the exclusive Accu-Clamp™ design incorporating self-centering clamping collars, assembly and adjustment are convenient. Crafted from high-quality stainless steel, these couplings are precision machined, non-marring, and offer high clamping power, suitable for various industrial applications. Available in Steel, Stainless Steel, and Aluminum variants.

Product Specifications

Dimensional Attributes Bore Size A

5/16 in

Dimensional Attributes Bore Size B

5/16 in

Dimensional Attributes Outside Diameter

0.813 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Size

4-40 x 5/16

Dimensional Attributes Total Length

1.250 in

Specifications Alloy

303

Specifications Approximate Weight

0.12 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications List Price

93.11 USD

Specifications Material

Stainless Steel

Specifications Part Number

13S005005PSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

18-8 Stainless Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786039607

Precision Sleeve Hex Bore Couplings
