Precision Sleeve Hex Bore Couplings
Precision Sleeve Hex Bore Couplings
SKU:ROU-fa3da1
Achieve precise shaft alignment with our Precision Sleeve Hex Bore Couplings. Easy assembly, high clamping power, and shaft protection in Steel, Stainless Steel, and Aluminum options.
Regular price
$88.84
Regular price
Sale price
$88.84
Unit price
per
Initiate Order
Precision Sleeve Hex Bore Couplings
$88.84
Quantity: 1
Claim Your Seller Account
Precision Sleeve Hex Bore Couplings
$88.84
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

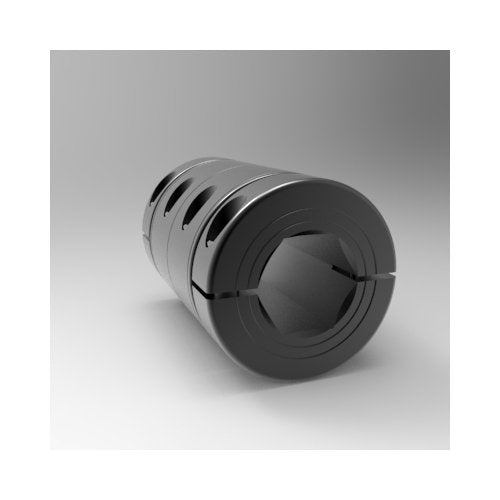

The Precision Sleeve Hex Bore Couplings offer exceptional shaft alignment with an axial runout of less than .001" TIR. Designed for hexagonal shafts, these couplings feature a solid center section ensuring a close tolerance fit. The two-piece construction allows for easy assembly and adjustment while the smooth bore protects shafts from damage. With high clamping power and non-marring properties, these couplings are available in Steel, Stainless Steel, and Aluminum.
Product Specifications
Dimensional Attributes Bore Size A
7/8 in
Dimensional Attributes Bore Size B
7/8 in
Dimensional Attributes Outside Diameter
2.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.000 in
Specifications Alloy
1215
Specifications Approximate Weight
1.78 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
88.84 USD
Specifications Material
Steel
Specifications Part Number
13L014014PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039577
