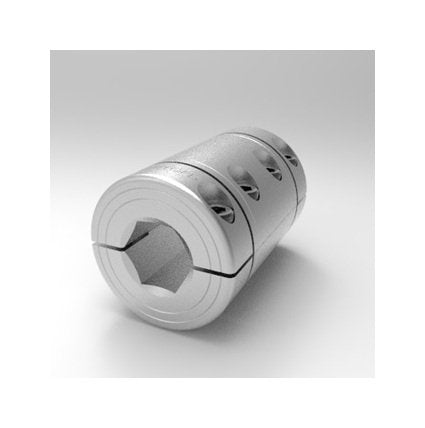

Precision Sleeve Hex Bore Couplings
Precision Sleeve Hex Bore Couplings
SKU:ROU-59eb54
Achieve precise shaft alignment with Precision Sleeve Hex Bore Couplings. Balanced design, easy adjustment, and high clamping power. RoHS2 and REACH compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Precision Sleeve Hex Bore Couplings
$129.99
Quantity: 1
Claim Your Seller Account
Precision Sleeve Hex Bore Couplings
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Hex Bore Couplings from our Signature Series are meticulously engineered for superior shaft alignment. Featuring a balanced design with opposing screw heads, these couplings ensure precision with an axial runout less than .001" TIR. The two-piece construction allows for convenient assembly and adjustment, while the smooth bore protects shafts from damage. Made of high-quality Stainless Steel Alloy 303, these couplings are non-marring, easy to adjust, and provide exceptional clamping power. Ideal for hexagonal shafts, this Stafford exclusive product meets RoHS2 and REACH compliance standards for your peace of mind.
Product Specifications
Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Total Length
2.875 in
Specifications Alloy
303
Specifications Approximate Weight
1.60 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
13S012012PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039676
