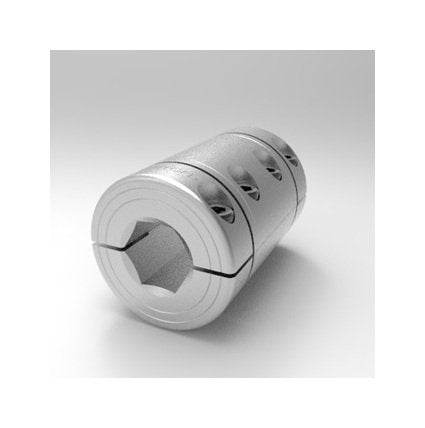

Precision Sleeve Hex Bore Couplings
Precision Sleeve Hex Bore Couplings
SKU:ROU-964ea0
Achieve precise shaft alignment with our Precision Sleeve Hex Bore Couplings. Convenient two-piece design with high clamping power. Made of Stainless Steel. Contact us for design update details.
Regular price
$107.70
Regular price
Sale price
$107.70
Unit price
per
Initiate Order
Precision Sleeve Hex Bore Couplings
$107.70
Quantity: 1
Claim Your Seller Account
Precision Sleeve Hex Bore Couplings
$107.70
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your equipment with our Precision Sleeve Hex Bore Couplings. Made of high-quality Stainless Steel, these couplings ensure precise shaft alignment, with axial runout less than .001" TIR. The two-piece design allows convenient assembly and adjustment, protecting shafts from damage. The exclusive solid center section provides a close tolerance fit and features Accu-Clamp™ design for high clamping power. Available in Steel, Stainless Steel, and Aluminum. Contact us for any inquiries during our design update process.
Product Specifications
Dimensional Attributes Bore Size A
7/16 in
Dimensional Attributes Bore Size B
7/16 in
Dimensional Attributes Outside Diameter
1.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Total Length
1.875 in
Specifications Alloy
303
Specifications Approximate Weight
0.47 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
107.7 USD
Specifications Material
Stainless Steel
Specifications Part Number
13S007007PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039621
