Precision Sleeve Hex Bore Couplings Set
Precision Sleeve Hex Bore Couplings Set
SKU:ROU-0e5f96
Achieve precision shaft alignment with our Two-Piece Precision Sleeve Hex Bore Couplings Set. Easy assembly, high clamping power, and durable construction. Available in various materials.
Regular price
$66.64
Regular price
Sale price
$66.64
Unit price
per
Initiate Order
Precision Sleeve Hex Bore Couplings Set
$66.64
Quantity: 1
Claim Your Seller Account
Precision Sleeve Hex Bore Couplings Set
$66.64
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

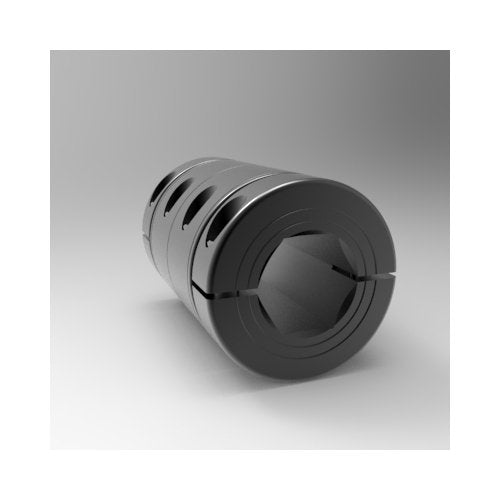

The Precision Sleeve Hex Bore Couplings Set is designed for hexagonal shafts, ensuring precise shaft alignment with axial runout less than .001" TIR. With a two-piece construction for easy assembly and adjustment, it features a solid center section for a tight fit on ground shafting. The exclusive Accu-Clamp™ design incorporates self-centering clamping collars for added convenience and high clamping power. Available in steel, stainless steel, or aluminum, this coupling protects shafts from damage and offers precision machining for non-marring adjustments.
Product Specifications
Dimensional Attributes Bore Size A
1/2 in
Dimensional Attributes Bore Size B
1/2 in
Dimensional Attributes Outside Diameter
1.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Total Length
1.875 in
Specifications Alloy
1215
Specifications Approximate Weight
0.69 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
66.64 USD
Specifications Material
Steel
Specifications Part Number
13L008008PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039522
