Precision Sleeve Hex Bore Couplings - Stainless Steel
Precision Sleeve Hex Bore Couplings - Stainless Steel
SKU:ROU-4b5df7
Achieve precise shaft alignment with our Stainless Steel Precision Sleeve Hex Bore Couplings, featuring Accu-Clamp™ design. Convenient assembly, high clamping power.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Sleeve Hex Bore Couplings - Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Precision Sleeve Hex Bore Couplings - Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

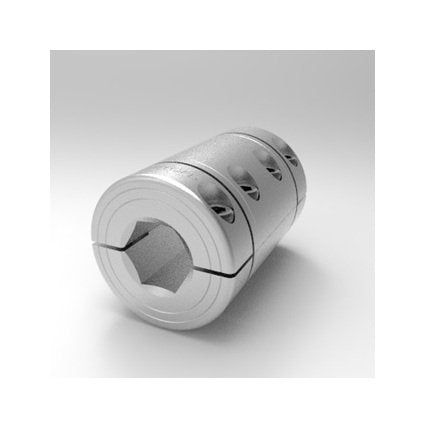

The Precision Sleeve Hex Bore Couplings are indispensable for ensuring accurate shaft alignment with axial runout less than .001" TIR. Made of high-quality stainless steel, this two-piece coupling features a solid center section for a precise fit on ground shafting. The exclusive Accu-Clamp™ design includes self-centering clamping collars for added convenience during assembly and adjustment, protecting shafts from damage. It is easy to adjust, non-marring, and offers exceptional clamping power. Available in Steel, Stainless Steel, and Aluminum variants.
Product Specifications
Dimensional Attributes Bore Size A
3/8 in
Dimensional Attributes Bore Size B
3/8 in
Dimensional Attributes Outside Diameter
1.063 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
6-32 x 3/8
Dimensional Attributes Total Length
1.625 in
Specifications Alloy
303
Specifications Approximate Weight
0.3 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
13S006006PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039614
