Precision Sleeve Hex Bore Couplings - Two-Piece Split

Name: Precision Sleeve Hex Bore Couplings - Two-Piece Split
Brand: Stafford Manufacturing Corp.
SKU: ROU-be4df6
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-be4df6

Achieve precision alignment with split hex bore couplings. High clamping power for hex shafts. Made in USA, RoHS2 & REACH compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

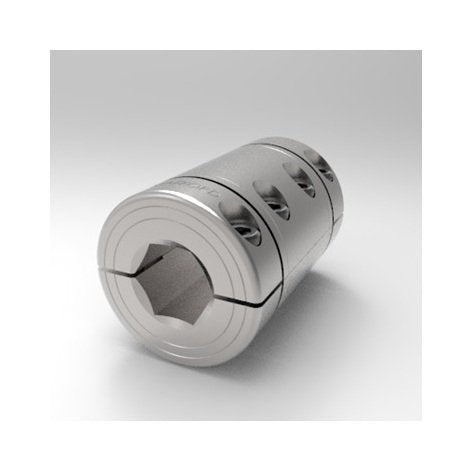

The Precision Sleeve Hex Bore Couplings feature a balanced design with opposing screw heads for enhanced stability and precision. Designed for hexagonal shafts, these couplings ensure precise shaft alignment with axial runout less than .001" TIR. The two-piece assembly allows for convenient adjustment and disassembly, while the Stafford exclusive design offers high clamping power and protection against shaft damage. Available in steel, stainless steel, and aluminum options. Made in the USA with RoHS2 and REACH compliance.

Product Specifications

Dimensional Attributes Bore Size A

1 in

Dimensional Attributes Bore Size B

1 in

Dimensional Attributes Outside Diameter

2.125 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Total Length

3.250 in

Specifications Alloy

2024

Specifications Approximate Weight

0.78 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Aluminum

Specifications Part Number

13A100100PSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786039805
