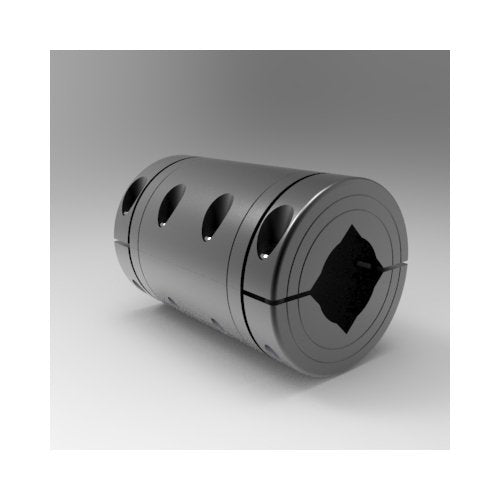

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-27785f
Premium two-piece square bore couplings for precise shaft alignment, easy assembly, and high clamping power. Available in varied materials. Contact Sales Dept for latest design updates.
Regular price
$86.75
Regular price
Sale price
$86.75
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$86.75
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$86.75
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Square Bore Couplings by Stafford feature a two-piece design for convenient assembly and adjustment. With axial runout less than .001" TIR, these couplings assure precise shaft alignment, protecting shafts with a smooth bore. Crafted with a solid center section for close tolerance fit and Stafford's exclusive Accu-Clamp™ self-centering clamping collars, these couplings are precision machined, non-marring, and offer high clamping power. Available in Steel, Stainless Steel, and Aluminum. Contact Sales Dept for details on the latest balanced design with screw heads in opposing directions.
Product Specifications
Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Outside Diameter
2.125 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.250 in
Specifications Alloy
1215
Specifications Approximate Weight
2.37 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
86.75 USD
Specifications Material
Steel
Specifications Part Number
15L012012PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040337
