Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-63c241
Achieve precise shaft alignment with our Precision Sleeve Couplings. Easy assembly, high clamping power, and non-marring features.
Regular price
$57.41
Regular price
Sale price
$57.41
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$57.41
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$57.41
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

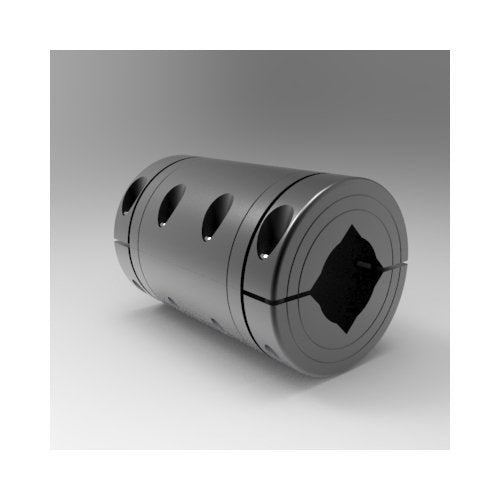

The Precision Sleeve Square Bore Couplings ensure meticulous shaft alignment with axial runout less than .001" TIR. Featuring a two-piece design for easy assembly and adjustment, the solid center section provides a close tolerance fit on ground shafting. Stafford's exclusive Accu-Clamp™ design with self-centering clamping collars offers precision, non-marring adjustment, and high clamping power. Available in Steel, Stainless Steel, and Aluminum options.
Product Specifications
Dimensional Attributes Bore Size A
3/8 in
Dimensional Attributes Bore Size B
3/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.85 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
57.41 USD
Specifications Material
Steel
Specifications Part Number
15L006006PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040276
