Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-d77396
Achieve precise shaft alignment with our Two-Piece Split Precision Sleeve Square Bore Couplings. Non-marring, easy to adjust, and high clamping power.
Regular price
$160.69
Regular price
Sale price
$160.69
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$160.69
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$160.69
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

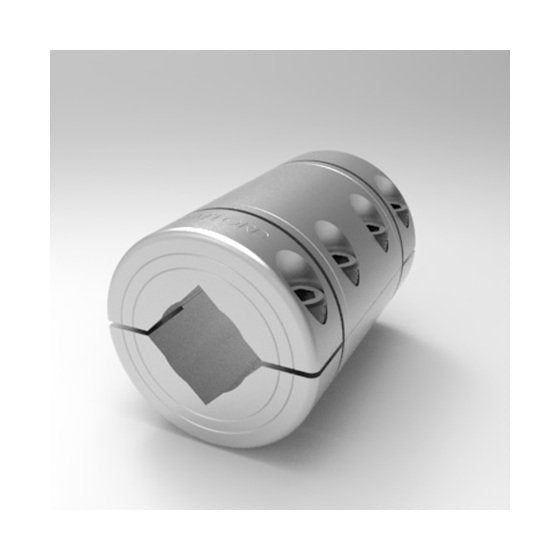

Experience precise shaft alignment with our Two-Piece Split Precision Sleeve Square Bore Couplings. Designed with a solid center section for a close tolerance fit, Stafford's exclusive coupling features an Accu-Clamp™ design for self-centering clamping collars. Achieve axial runout less than .001" TIR, convenient assembly and adjustment, non-marring surface, and high clamping power. Stocked in steel, stainless steel, and aluminum options.
Product Specifications
Dimensional Attributes Bore Size A
1 in
Dimensional Attributes Bore Size B
1 in
Dimensional Attributes Outside Diameter
2.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.750 in
Specifications Alloy
2024
Specifications Approximate Weight
1.34 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
160.69 USD
Specifications Material
Aluminum
Specifications Part Number
15A100100PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040573
