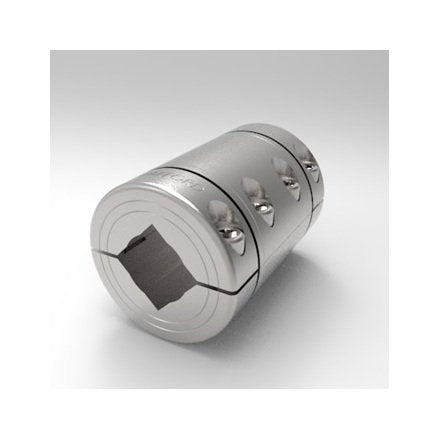

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-355ce3
Achieve precision alignment with our Stainless Steel Couplings for square shafts. Axial runout < 0.001" TIR, self-centering clamping collars, and convenient assembly.
Regular price
$138.53
Regular price
Sale price
$138.53
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$138.53
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$138.53
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision alignment with our Two-Piece Split Sleeve Couplings. Designed with a balanced screw head configuration for optimal shaft alignment, this precision sleeve coupling ensures axial runout less than 0.001" TIR. The exclusive Accu-Clamp™ design with integral self-centering clamping collars offers convenient assembly and adjustment, protecting shafts from damage. Crafted from high-quality Stainless Steel, this coupling provides a close tolerance fit, easy adjustment, and high clamping power.
Product Specifications
Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Outside Diameter
2.125 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Total Length
3.250 in
Specifications Alloy
303
Specifications Approximate Weight
2.43 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
138.53 USD
Specifications Material
Stainless Steel
Specifications Part Number
15S012012PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040443
